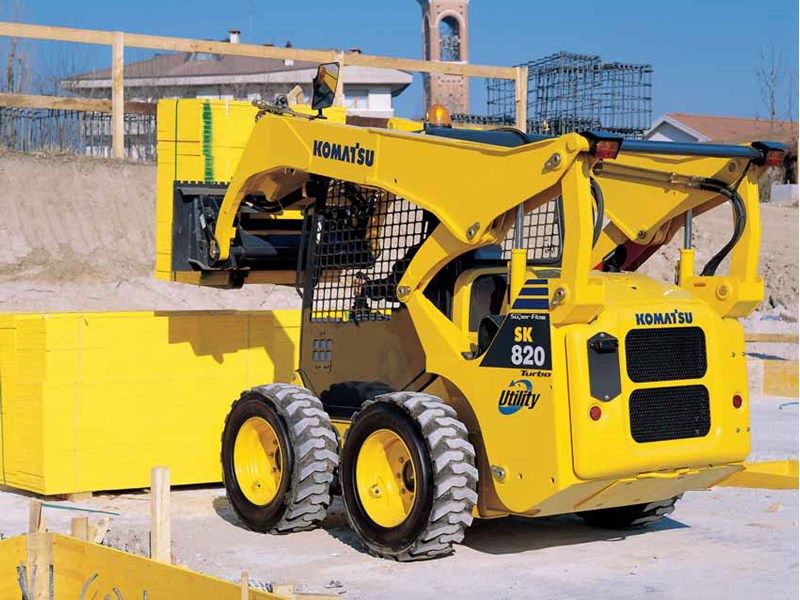

Komatsu SK820-5SF
Browse All Komatsu or Skid Steer Loader Models
Contents:
Dimensions
| Height | 78.75 in (2000 mm) |
| Length | 131.89 in (3350 mm) |
| Width | 5.68 ft in (1730 mm) |
Tyres
| Standard | 10-16.5 8PR |
| Option | 10-16.5 8PR (narrow tread) |
Environment
| Hand/Arm | ≤ 2,5 m/s² (uncertainty K = 1,2 m/s²) |
| Body | ≤ 0,5 m/s² (uncertainty K = 0,2 m/s²) |
Electrical System
| Alternator | 55A |
| Voltage | 12V V |
| Batteries | 80AH |
Engine
| Engine Power@Iso 14396 | 485 hp (361.7 kw) |
| Air Filter Type | Dry with safety element |
| Starter Motor | Electric motor with pre-heating air system for cold climate |
| Engine Power@Iso9249 | 472 hp (352 kw) |
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | Komatsu S4D84E-6BMFD |
| Engine Type | 4-cycle water-cooled diesel engine |
| Cooling System | water |
| Max Torque | 1157.3 lb ft (1569 Nm) |
| Aspiration | Turbo |
| Bore | 3.4 in (84 mm) |
| Stroke | 3.6 in (90 mm) |
Capacities
| Hydraulic Transmission (Chains) | 15,5 + 15,5 ltr |
| Fuel Tank | 18 gal (68 L) |
| Hydraulic System | 10.1 gal (38 L) |
| Engine Oil | 2.2 gal (8 L) |
Transmission
| Hydrostaticmotors | 2 × axial pistons |
| Number .Of.Travel Speed | 2 |
| Pump Type | 2 × variable displacement with 2 stage |
| Transmission Type | Hydrostatic |
| Max Travel Speed | 16 mph (25.8 km/h) |
Loader
| Standard Bucket Capacity (Iso 7546) | 0.4 m³ |
Weights
| Operator (Iso 6016) | 3.080KG |
Loader
| Operating Capacity (Iso 14397) | 1984.2 lb (900 kg) |
| Bucket Breakout Force (Iso 14397) | 4.3 lb (2 kg) |
| Operating Capacity With Pallet Forks | 1322.8 lb (600 kg) |
| Tipping Angle | 3968.4 degrees |
Weights
| Operating Weight | with standard bucket, fully serviced, +75 kg |
Hydraulic System
| Maxpumpflow | 16.4 gal/min (62 L/min) |
| Hydraulic Pump | Gear pump |
| Super Flow_Optional_Max. Pump Fl Ow | 26.5 gal/min (100 L/min) |
| Super Flow_Optional_Max Operating Pressure | 206Bar |
| Pump Flow Capacity | 16.4 gal/min (62 L/min) |
| Control Valve | 3elements fully servo-controlled |
| Hydraulic System Type | Komatsu CLSS |
