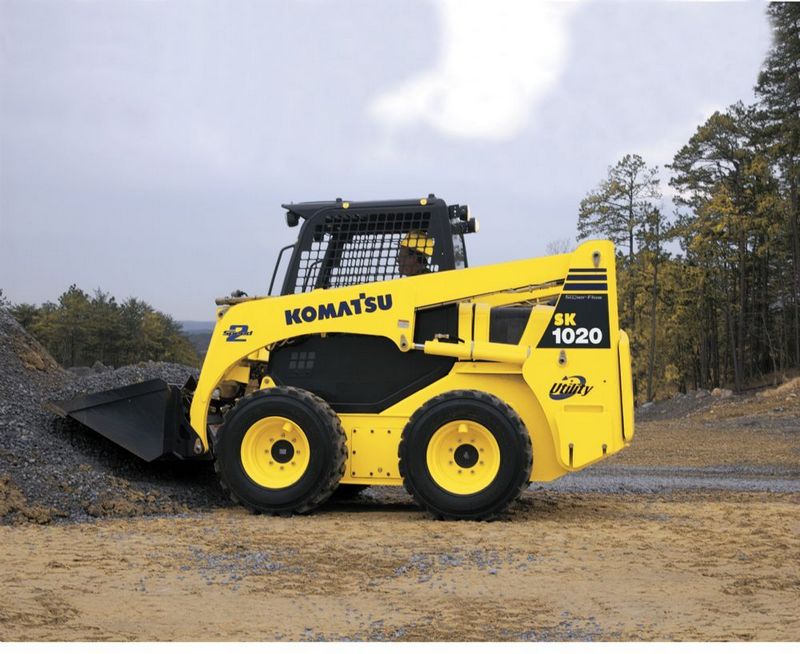

Komatsu SK1020-5
Browse All Komatsu or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 12.09 ft in (3683 mm) |
| Width Over Tires | 5.68 ft in (1730 mm) |
| Ground Clearance | 8.27 in (210 mm) |
| Height To Top Of Cab | 6.83 ft in (2080 mm) |
| Wheelbase | 3.81 ft in (1160 mm) |
| Clearance At Max Lift And Dump | 7.5 ft in (2286 mm) |
| Reach At Max Lift And Dump | 27.17 in (690 mm) |
| Turning Radius From Center - Machine Rear | 64.97 in (1650 mm) |
| Turning Radius From Center - Inc Bucket | 89.18 in (2265 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D98E-1FD |
| Net Power | 70 hp (52.2 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | natural |
| Displacement | 207.5 cu in (3.4 L) |
Operational
| Operational Weight | 7572.9 lb (3435 kg) |
| Fuel Capacity | 19.3 gal (73 L) |
| Cooling System Fluid Capacity | 2.2 gal (8 L) |
| Engine Oil Fluid Capacity | 3.4 gal (12.5 L) |
| Max Speed | 10 mph (16 km/h) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Chain Box Fluid Capacity - Each Side | 8.5 gal (32 L) |
| Operating Speed | 6.3 mph (10 km/h) |
| Tire Size | 10-16.5 8PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 4277 lb (1940 kg) |
| Operating Load Rating | 1999.6 lb (907 kg) |
| Tipping Angle | 3999.2 degrees |
| Bucket Capacity | 0.7 yd3 (0.5 m3) |
Hydraulic
| Pump Type | Komatsu closed load sensing system |
| Pump Flow Capacity | 34.4 gal/min (130 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
