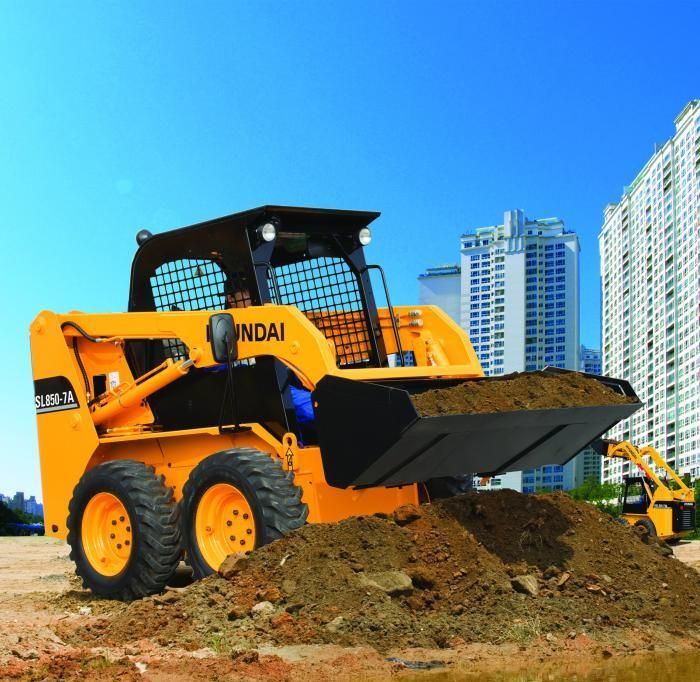

Hyundai HSL850-7
Browse All Hyundai or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.39 ft in (3470 mm) |
| Width Over Tires | 6.01 ft in (1830 mm) |
| Ground Clearance | 8.08 in (205 mm) |
| Height To Top Of Cab | 6.57 ft in (2000 mm) |
| Wheelbase | 3.61 ft in (1100 mm) |
| Length W/O Bucket | 9.32 ft in (2840 mm) |
| Clearance At Max Lift And Dump | 7.91 ft in (2410 mm) |
| Reach At Max Lift And Dump | 20.08 in (510 mm) |
| Turning Radius From Center - Machine Rear | 65.36 in (1660 mm) |
| Turning Radius From Center - Inc Bucket | 81.89 in (2080 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V3300DI |
| Gross Power | 68 hp (50.8 kw) |
| Net Power | 66 hp (49.3 kw) |
| Power Measured @ | 2400 rpm |
Operational
| Operational Weight | 7253.3 lb (3290 kg) |
| Fuel Capacity | 22 gal (83.3 L) |
| Hydraulic System Fluid Capacity | 15 gal (56.8 L) |
| Max Speed | 7.2 mph (11.6 km/h) |
| Tire Size | 12-16.5 12PR |
Loader
| Operating Load Rating | 1852 lb (840.1 kg) |
| Tipping Angle | 3715 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Flow Capacity | 17.7 gal/min (67 L/min) |
| Relief Valve Pressure | 2538 psi (17498.9 kPa) |
