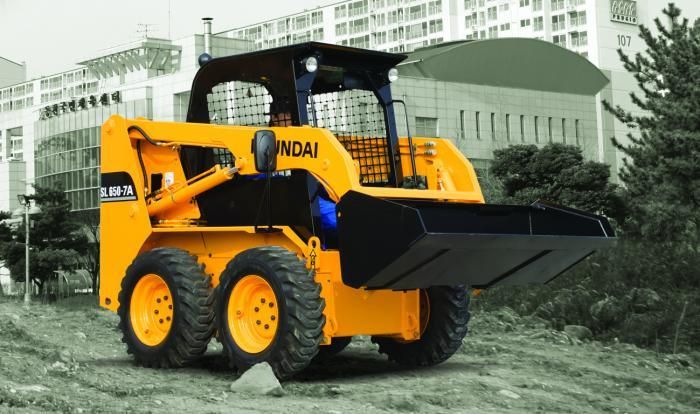

Hyundai HSL650-7
Browse All Hyundai or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.73 ft in (3270 mm) |
| Width Over Tires | 4.98 ft in (1515 mm) |
| Ground Clearance | 7.21 in (183 mm) |
| Height To Top Of Cab | 6.45 ft in (1965 mm) |
| Wheelbase | 3.25 ft in (990 mm) |
| Length W/O Bucket | 8.62 ft in (2625 mm) |
| Clearance At Max Lift And Dump | 7.35 ft in (2240 mm) |
| Reach At Max Lift And Dump | 21.66 in (550 mm) |
| Turning Radius From Center - Machine Rear | 61.42 in (1560 mm) |
| Turning Radius From Center - Inc Bucket | 76.19 in (1935 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V2203M |
| Gross Power | 44.2 hp (33 kw) |
| Net Power | 42.6 hp (31.8 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Operational Weight | 5787 lb (2625 kg) |
| Fuel Capacity | 16 gal (60.6 L) |
| Max Speed | 7.3 mph (11.8 km/h) |
| Hydraulic System Fluid Capacity | 10 gal (37.9 L) |
| Tire Size | 10-16.5, 6PR |
Loader
| Operating Load Rating | 1433 lb (650 kg) |
| Tipping Angle | 2538 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Flow Capacity | 18.4 gal/min (69.4 L/min) |
| Relief Valve Pressure | 2538 psi (17498.9 kPa) |
