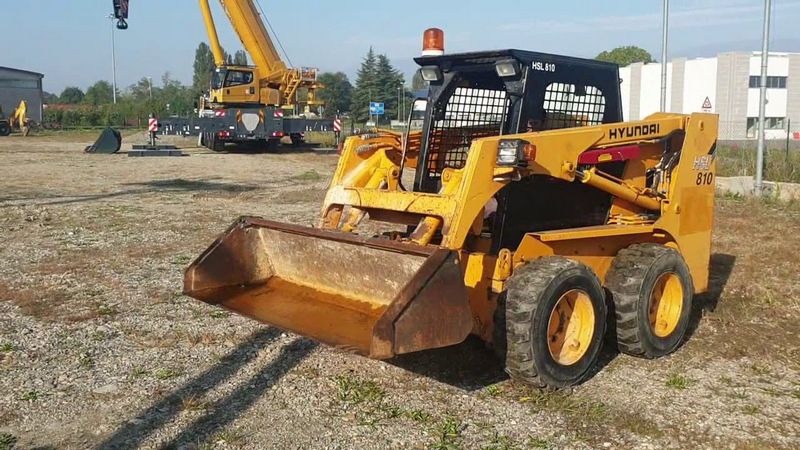

Hyundai HSL810
Browse All Hyundai or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.39 ft in (3470 mm) |
| Width Over Tires | 5.62 ft in (1710 mm) |
| Ground Clearance | 8.59 in (218 mm) |
| Height To Top Of Cab | 6.57 ft in (2000 mm) |
| Wheelbase | 3.43 ft in (1045 mm) |
| Length W/O Bucket | 9.26 ft in (2822 mm) |
| Clearance At Max Lift And Dump | 8.37 ft in (2550 mm) |
| Reach At Max Lift And Dump | 22.37 in (568 mm) |
| Turning Radius From Center - Machine Rear | 66.15 in (1680 mm) |
| Turning Radius From Center - Inc Bucket | 78.27 in (1988 mm) |
Engine
| Engine Make | 2348 |
| Engine Model | 4TNE98 |
| Gross Power | 70 hp (52.2 kw) |
| Net Power | 68.5 hp (51.1 kw) |
| Power Measured @ | 2500 rpm |
Operational
| Operational Weight | 7187.1 lb (3260 kg) |
| Fuel Capacity | 21.7 gal (82 L) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |
| Max Speed | 7.3 mph (11.8 km/h) |
| Tire Size | 12X16.5 |
Loader
| Tipping Angle | 3598 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Flow Capacity | 19.7 gal/min (74.2 L/min) |
| Relief Valve Pressure | 2465 psi (16995.6 kPa) |
