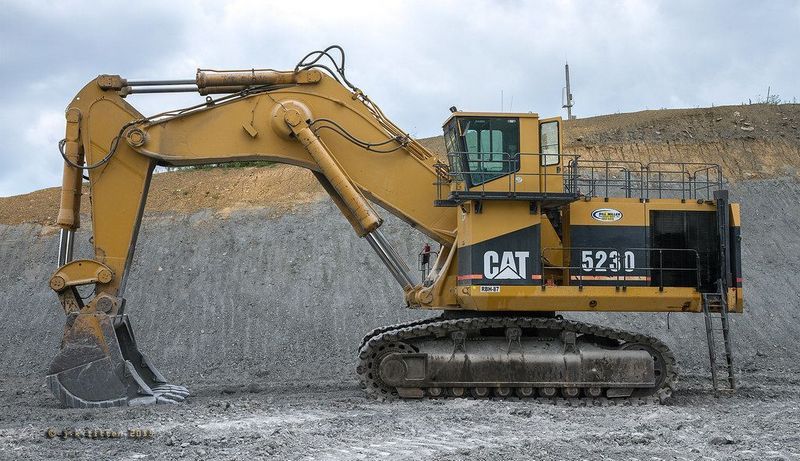

Caterpillar 5230
Browse All Caterpillar or Shovel Models
Contents:
Dimensions
| Width Over Tracks | 20.66 ft in (6296 mm) |
| Length Of Track On Ground | 26.82 ft in (8174 mm) |
| Height To Top Of Cab | 24.46 ft in (7455 mm) |
| Ground Clearance | 3.64 in (1108 mm) |
| Length Of Tracks | 33.88 ft in (10325 mm) |
| Upper Structure Ground Clearance | 8.04 ft in (2450 mm) |
| Height Of Tracks | 7.42 ft in (2260 mm) |
Loading Shovel
| Max Dig Reach | 32.81 ft in (10000 mm) |
| Max Cutting Height | 49.22 ft in (15000 mm) |
| Max Dig Depth | 12.47 ft in (3800 mm) |
Undercarriage
| Loading Shovel Shoe Width | 59.06 in (1500 mm) |
| Max Travel Speed | 1.56 mph (2.5 km/h) |
| Loading Shovel Ground Pressure | 22.2 psi (153.07 kPa) |
| Loading Shovel Operating Weight | 702172.35 lb (318500 kg) |
Engine
| Engine Model | 3516 EUI |
| Gross Power | 1470 hp (1096.2 kw) |
Operational
| Fuel Capacity | 1408.1 gal (5330 L) |
