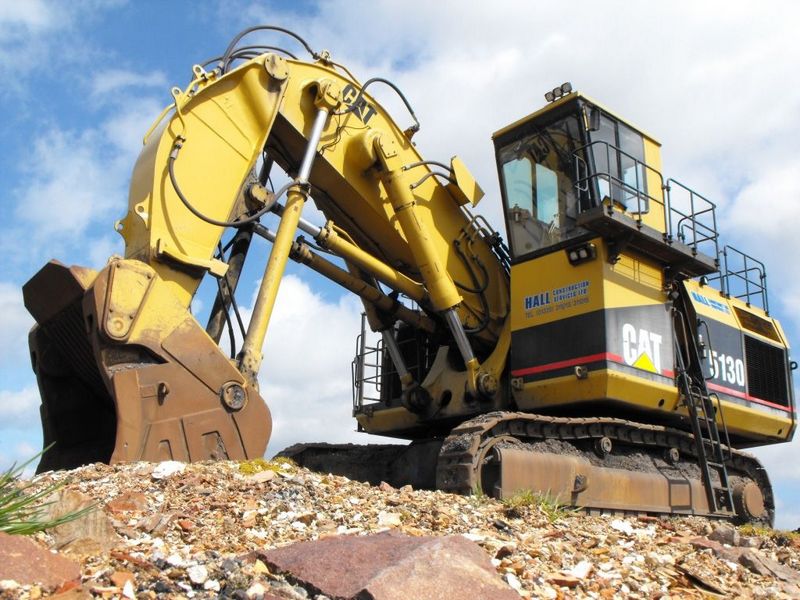

Caterpillar 5130B
Browse All Caterpillar or Shovel Models
Contents:
Dimensions
| Width Over Tracks | 17.62 ft in (5370 mm) |
| Length Of Track On Ground | 23.86 ft in (7270 mm) |
| Height To Top Of Cab | 21.49 ft in (6550 mm) |
| Ground Clearance | 3.15 in (960 mm) |
| Length Of Tracks | 28.79 ft in (8775 mm) |
| Upper Structure Ground Clearance | 6.71 ft in (2045 mm) |
| Height Of Tracks | 6.21 ft in (1890 mm) |
Loading Shovel
| Max Dump Height | 30.84 ft in (9400 mm) |
| Max Cutting Height | 44.13 ft in (13450 mm) |
| Max Dig Depth | 10.5 ft in (3200 mm) |
Undercarriage
| Loading Shovel Shoe Width | 39.38 in (1000 mm) |
| Max Travel Speed | 2.06 mph (3.3 km/h) |
| Loading Shovel Ground Pressure | 20.9 psi (144.11 kPa) |
| Loading Shovel Operating Weight | 399036.72 lb (181000 kg) |
Engine
| Engine Model | 3508b EUI |
| Gross Power | 800 hp (596.6 kw) |
| Displacement | 2105.4 cu in (34.5 L) |
Operational
| Fuel Capacity | 686.9 gal (2600 L) |
