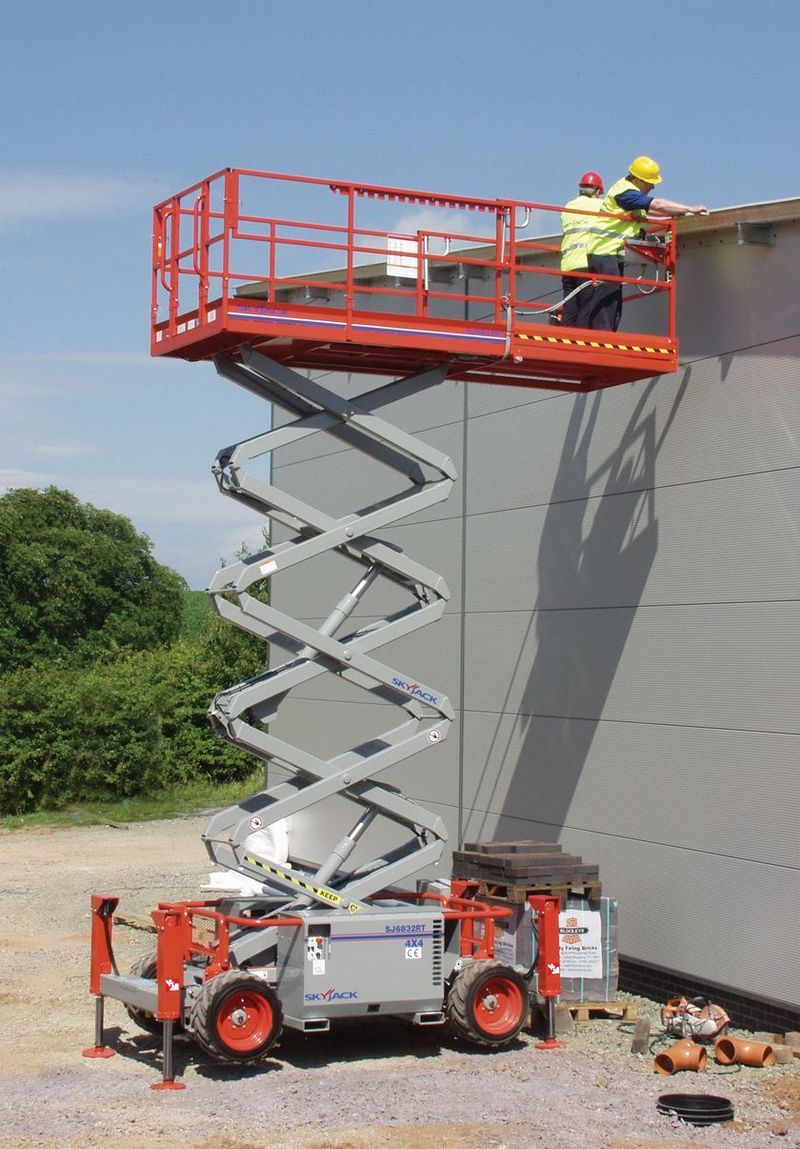

Skyjack SJ6832 RT
Browse All Skyjack or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 107.09 in (2720 mm) |
| Wheelbase | 6.7 ft in (2040 mm) |
| Overall Width | 5.78 ft in (1760 mm) |
| Height W/ Rails | 8.24 ft in (2510 mm) |
| Ground Clearance | 7.88 in (200 mm) |
| Height W/O Rails | 5.75 ft in (1750 mm) |
| Turning Radius | 13 ft in (3960 mm) |
| Gradeability | 40 % |
Platform
| Max Platform Height | 31.99 ft in (9750 mm) |
| Deck Extension | 59.85 in (1520 mm) |
| Height Of Rails | 2.3 ft in (700 mm) |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
| Lower Time | 36 sec |
| Platform Height - Lowered | 4494.76 ft in (1370 m) |
| Max Working Height | 38 ft in (11580 mm) |
| Platform Inner Width | 55.91 in (1420 mm) |
| Lift Time | 39 sec |
| Platform Inner Length | 96.07 in (2440 mm) |
Engine
| Gross Power | 4.7 hp (3.5 kw) |
| Fuel Type | Gas/propane |
Operational
| Operating Weight | 7661.1 lb (3475 kg) |
| Max Speed | 3.8 mph (6.1 km/h) |
| Tire Size | 26 x 12 |
| Tire Fill/Type | Foam Filled |
