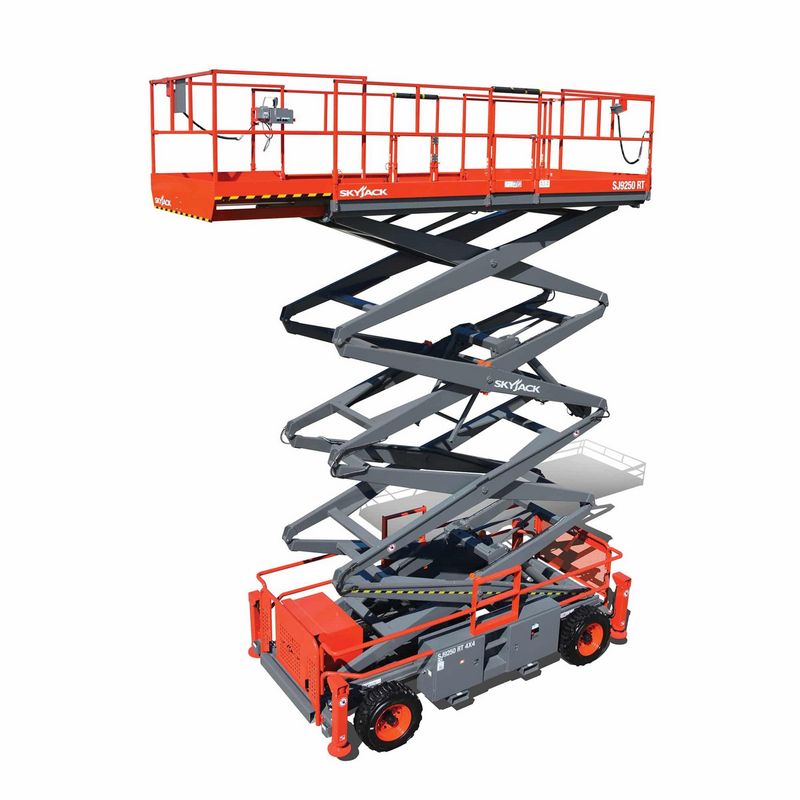

Skyjack SJ9250 RT
Browse All Skyjack or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 175.99 in (4470 mm) |
| Wheelbase | 9.91 ft in (3020 mm) |
| Overall Width | 7.68 ft in (2340 mm) |
| Height W/ Rails | 10.41 ft in (3170 mm) |
| Ground Clearance | 7.88 in (200 mm) |
| Height W/O Rails | 7.52 ft in (2290 mm) |
| Turning Radius | 25.1 ft in (7650 mm) |
| Gradeability | 30 % |
Platform
| Max Platform Height | 50 ft in (15240 mm) |
| Deck Extension | 59.85 in (1520 mm) |
| Max Working Height | 56.01 ft in (17070 mm) |
| Platform Height - Lowered | 6594.49 ft in (2010 m) |
| Platform Inner Length | 168.12 in (4270 mm) |
| Platform Inner Width | 74.02 in (1880 mm) |
| Lower Time | 72 sec |
| Lift Time | 67 sec |
Operational
| Load Capacity | 1499.2 lb (680 kg) |
| Operating Weight | 15200.9 lb (6895 kg) |
| Max Speed | 2 mph (3.2 km/h) |
| Tire Size | 10 x 16.5 |
| Tire Fill/Type | Air Filled |
