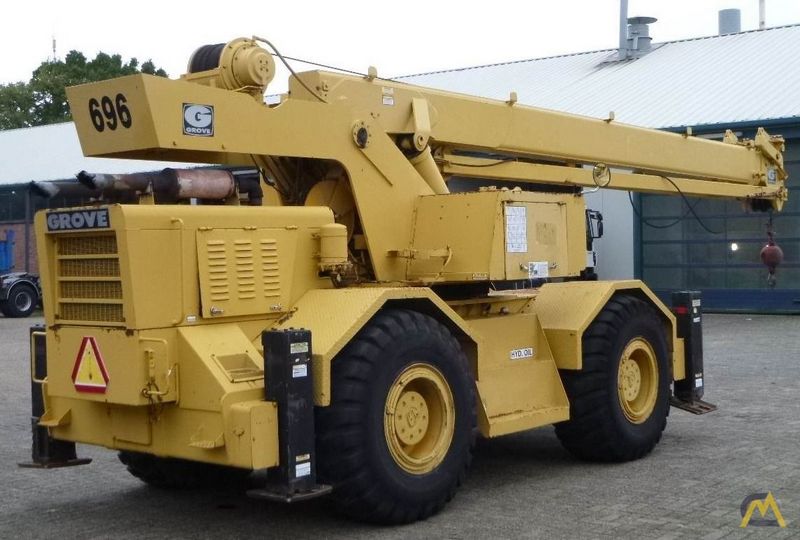

Grove RT59S
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 24 ft in (7.32 m) |
| Max Height @ Max Raise Angle - No Jib | 60 ft in (18.29 m) |
| Min Operating Radius | 12 ft in (3.66 m) |
| Max Elevating Angle | 75 degrees |
| Max Operating Radius | 55 ft in (16.77 m) |
| Number Of Sections | 3 |
| Max Lift Capacity | 30000 lb (13607.78 kg) |
| Swing Speed | 3.14 rpm |
Dimensions
| Transport Length | 34.33 ft in (10463.79 mm) |
| Transport Width | 7.97 ft in (2429.26 mm) |
| Transport Height | 10.92 ft in (3328.42 mm) |
| Wheelbase | 9.5 in (2895.6 mm) |
| Ground Clearance | 1.42 ft in (432.82 mm) |
| Width W/ Outriggers Extended | 17.62 ft in (5370.58 mm) |
| Carrier/Base Length | 20.36 ft in (6202.68 m) |
| Upper Structure Tail Swing Radius | 10.27 ft in (3130.3 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | V-504C |
| Net Power | 142 hp (105.9 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 287 lb ft (389.2 Nm) |
| Torque Measured @ | 2600 rpm |
| Displacement | 504 cu in (8.3 L) |
| Aspiration | natural |
Operational
| Operating Weight | 47980 lb (21763.4 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Hydraulic System Fluid Capacity | 90 gal (340.7 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 16.00x24-16ply |
Transmission
| Transmission Type | remote mounted full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 27.1 mph (43.7 km/h) |
