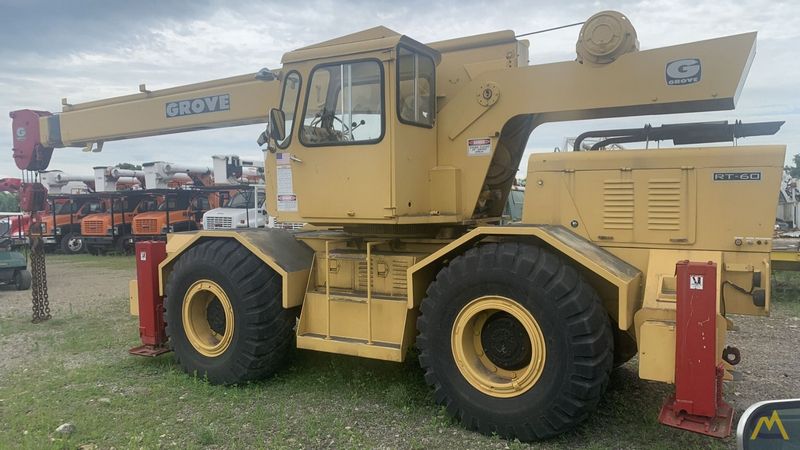

Grove RT60S
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 28 ft in (8.54 m) |
| Max Height @ Max Raise Angle - No Jib | 70 ft in (21.34 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 75 degrees |
| Max Operating Radius | 66.5 ft in (20.27 m) |
| Number Of Sections | 3 |
| Max Lift Capacity | 36000 lb (16329.33 kg) |
| Swing Speed | 3.1 rpm |
Dimensions
| Transport Length | 35.56 ft in (10836 mm) |
| Transport Width | 7.97 ft in (2429 mm) |
| Transport Height | 10.95 ft in (3335 mm) |
| Wheelbase | 9.51 in (2896 mm) |
| Ground Clearance | 1.13 ft in (343 mm) |
| Width W/ Outriggers Extended | 17.63 ft in (5372 mm) |
| Carrier/Base Length | 20.35 ft in (6201 m) |
| Upper Structure Tail Swing Radius | 10.28 ft in (3131 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | V-504C |
| Net Power | 142 hp (105.9 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 303 lb ft (410.9 Nm) |
| Torque Measured @ | 1800 rpm |
| Displacement | 504 cu in (8.3 L) |
| Aspiration | natural |
Operational
| Operating Weight | 47980 lb (21763.4 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 16.00x24-16ply |
Transmission
| Transmission Type | remote mounted full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 28.5 mph (45.9 km/h) |
