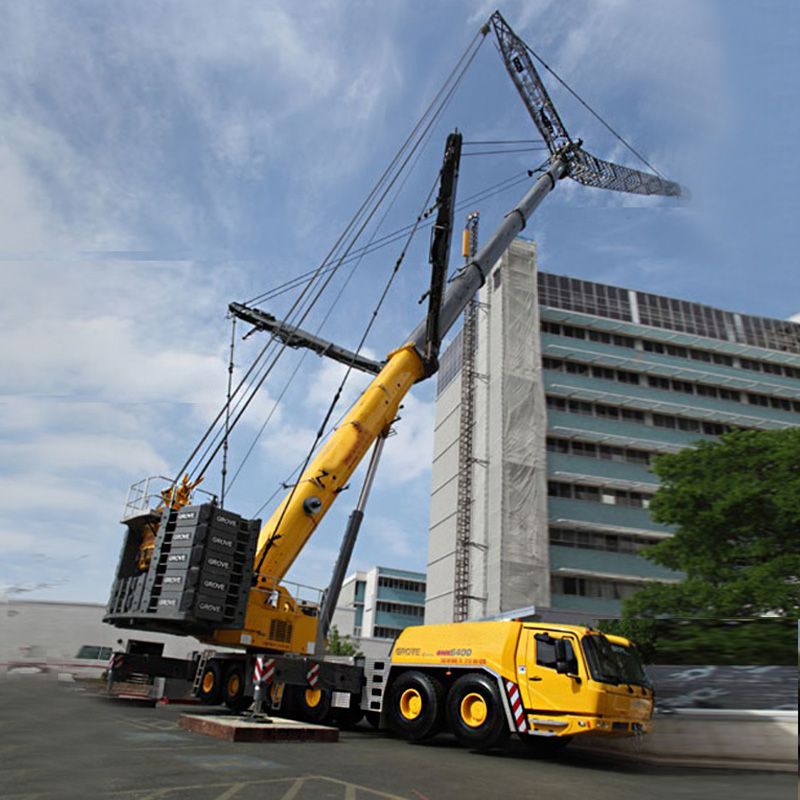

Grove GMK6400
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 54 ft in (16.46 m) |
| Max Height @ Max Raise Angle - No Jib | 209 ft in (63.71 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 899999.91 lb (408233.12 kg) |
Dimensions
| Transport Length | 56.76 ft in (17300 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Width W/ Outriggers Extended | 27.89 ft in (8500 mm) |
| Carrier Length | 51.61 ft in (15730 mm) |
| Upper Structure Tail Swing Radius | 11.17 ft in (3402 mm) |
Upper Structure Engine
| Make | Grove |
Carrier Engine
| Make | Grove |
| Model | OM502LA |
| Gross Power | 543.2 hp (405 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1917.7 lb ft (2600 Nm) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 158732.9 lb (72000 kg) |
| Number Of Axels | 7 |
| Upper Structure Fuel Capacity | 171.8 gal (650 L) |
| Upper Structure Hydraulic System Fluid Capacity | 343.5 gal (1300 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 445/95 R25 |
Transmission
| Transmission Type | ZF AS Tronic |
| Max Speed - Forward | 52.9 mph (85 km/h) |
