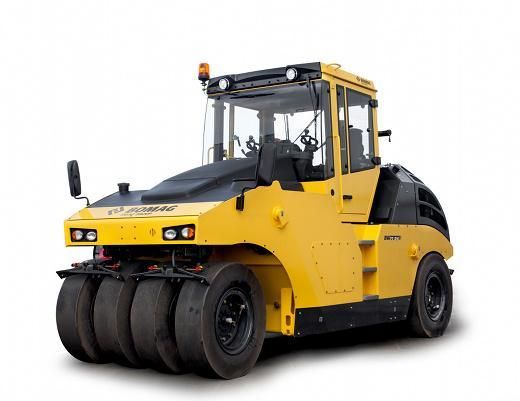

Bomag BW 27 RH-4I
Browse All Bomag or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 194.5 in (4940.3 mm) |
| Overall Width | 6.7 ft in (2042.16 mm) |
| Height To Top Of Rops | 10.15 ft in (3091.19 mm) |
| Wheelbase | 12.15 ft in (3700.79 mm) |
| Ground Clearance | 0.99 ft in (299.73 mm) |
| Gradeability | 27 % |
Steering System
| System | 2 Punkt Schemell |
| Steering Method | Hydrostatic |
| Steering Angle | 30 degrees |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 4.1 L04 |
| Gross Power | 95 hp (70.9 kw) |
| Net Power | 125.6 hp (93.7 kw) |
Operational
| Fuel Capacity | 66 gal (249.9 L) |
| Water Spray Tank Fluid Capacity | 105.7 gal (400.2 L) |
| Max Speed | 12.4 mph (20 km/h) |
| Operating Voltage | 12 V |
Weights
| Operating Weight - Standard | 19401 lb (8800.2 kg) |
| Operating Weight - Max Ballast | 59525 lb (27000.1 kg) |
| Average Weight Per Wheel - Max Ballast | 7441 lb (3375.2 kg) |
Tires
| Standard Tire Size | 1100-20 18PR |
| Oscillation Angle | 10 degrees |
Brakes
| Parking Brake | Federsp or Hydrostatic gel |
| Service Brake | Pneumatic or Hydrostatic |
