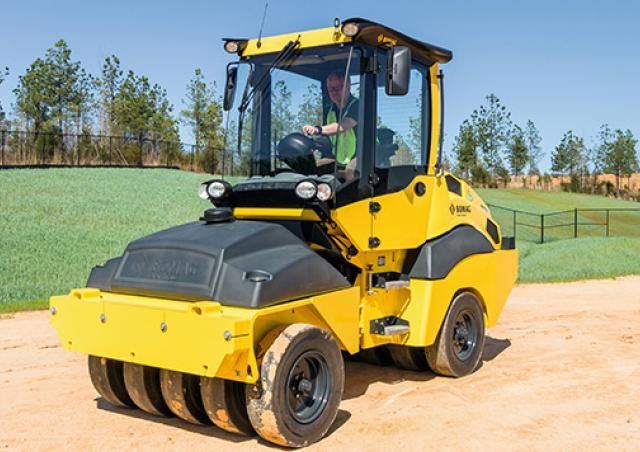

Bomag BW 11 RH-5
Browse All Bomag or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 174.4 in (4429.76 mm) |
| Overall Width | 5.67 ft in (1727.21 mm) |
| Height To Top Of Rops | 9.42 ft in (2870.21 mm) |
| Wheelbase | 8.2 ft in (2499.36 mm) |
| Ground Clearance | 1.25 ft in (381 mm) |
| Gradeability | 20 % |
Steering System
| System | Oscillatory Articulation |
| Steering Method | Hydrostatic |
| Steering Angle | 35 degrees |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | V3307 CR-T |
| Gross Power | 74 hp (55.2 kw) |
Operational
| Fuel Capacity | 52.8 gal (199.9 L) |
| Water Spray Tank Fluid Capacity | 140 gal (530 L) |
| Max Speed | 12.4 mph (20 km/h) |
| Operating Voltage | 12 V |
Weights
| Operating Weight - Standard | 11464 lb (5200 kg) |
| Operating Weight - Max Ballast | 11905 lb (5400.1 kg) |
| Average Weight Per Wheel - Standard | 24251 lb (11000.1 kg) |
| Average Weight Per Wheel - Max Ballast | 2694 lb (1222 kg) |
Tires
| Number Of Tires - Front | 5 |
| Number Of Tires - Rear | 4 |
| Standard Tire Size | 7.50x15 14PL |
| Oscillation Angle | 10 degrees |
| Wheel Track/Tire Overlap | 0.5 in (12.7 mm) |
