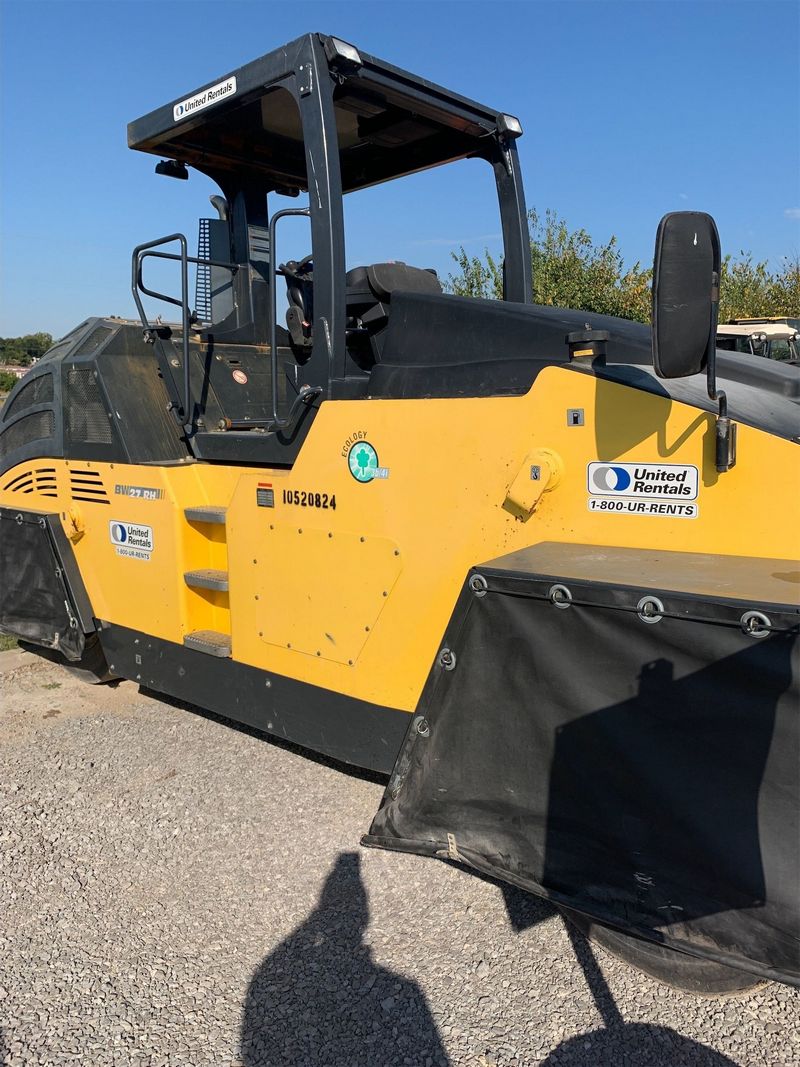

Bomag BW27RH
Browse All Bomag or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 16.36 in (4985 mm) |
| Overall Width | 6.95 ft in (2118 mm) |
| Height To Top Of Rops | 10.14 ft in (3090 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
| Ground Clearance | 11.8 ft in (300 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | TCD 2012 L04 |
| Gross Power | 134 hp (100 kw) |
| Power Measured @ | 2300 rpm |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 66.1 gal (250 L) |
| Water Spray Tank Fluid Capacity | 105.7 gal (400 L) |
| Max Speed | 12.5 mph (20 km/h) |
| Operating Voltage | 12 V |
Weights
| Operating Weight - Standard | 29762 lb (13499.9 kg) |
| Operating Weight - Max Ballast | 59525 lb (27000.1 kg) |
| Average Weight Per Wheel - Max Ballast | 7441 lb (3375.2 kg) |
Tires
| Number Of Tires - Front | 4 |
| Number Of Tires - Rear | 4 |
| Standard Tire Size | 11.00-20 18PR |
| Oscillation Angle | 4 degrees |
| Wheel Track/Tire Overlap | 1.7 in (42 mm) |
