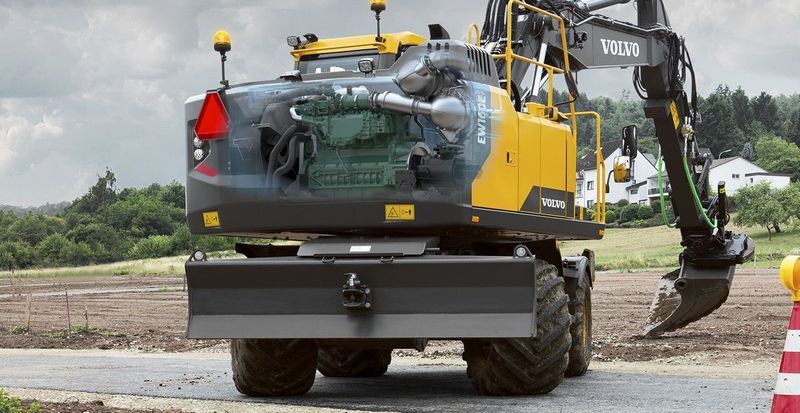

Volvo EW 180 E
Browse All Volvo or Mobile Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 31.89 ft in (9720 mm) |
| Max Digging Depth | 18.18 ft in (5540 mm) |
| Min - Front Slew Radius | 9.81 ft in (2990 mm) |
| Max.Dumping Height | 21.43 ft in (6530 mm) |
| Max Vertical Wall Digging Depth | 15.42 ft in (4700 mm) |
| Max Digging Reach On Ground | 30.19 ft in (9200 mm) |
| Max Digging Reach | 30.84 ft in (9400 mm) |
| Boom/Stick Option (Hex) 1 | MoonBoom 5,2 mm,(Ft,in-17,1),Arm 245 mm,(Ft,in-8,0) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 32.22 ft in (9820 mm) |
| Max Digging Depth | 18.67 ft in (5690 mm) |
| Max Digging Reach On Ground | 30.68 ft in (9350 mm) |
| Boom/Stick Option (Hex) 2 | MoonBoom 5,2 mm,(Ft,in-17,1),Arm 26mm,(Ft,in-8,6) |
| Max Digging Reach | 31.27 ft in (9530 mm) |
| Max Vertical Wall Digging Depth | 15.93 ft in (4855 mm) |
| Max.Dumping Height | 21.76 ft in (6630 mm) |
| Min - Front Slew Radius | 9.88 ft in (3010 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 33.04 ft in (10070 mm) |
| Max Digging Depth | 20.02 ft in (6100 mm) |
| Boom/Stick Option (Hex) 3 | MoonBoom 5,2 mm,(Ft,in-17,1),Arm 30mm,(Ft,in-9,10) |
| Max Vertical Wall Digging Depth | 17.18 ft in (5235 mm) |
| Max.Dumping Height | 22.58 ft in (6880 mm) |
| Max Digging Reach On Ground | 31.94 ft in (9735 mm) |
| Max Digging Reach | 32.81 ft in (10000 mm) |
| Min - Front Slew Radius | 10.01 ft in (3050 mm) |
Dimensions
| Wheelbase | 8.7 ft in (2650 mm) |
| Tail Swing Radius | 8.37 ft in (2550 mm) |
| Overall Width | 108.27 in (2750 mm) |
| Ground Clearance | 1.1 ft in (333 mm) |
| Overall Height (To Top Of Cab) | 10.47 ft in (3190 mm) |
| Counterweight Clearance | 4.2 ft in (1280 mm) |
Speeds
| Speed -On Road | 21.7 mph (35 km/h) |
| Speed -Off Road | 5.5 mph (8.9 km/h) |
| Creep | 3.7 mph (6 km/h) |
| Min Turning Radius | 25 ft in (7.6 m) |
Electrical System
| Battery Capacity | 2 X 140 Ah |
| Alternator | 28/120 V/Ah |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 X12 V |
Engine
| Max Power | 1800 rpm |
| Number Of Cylinders | 6 |
| Def/Adblue® Tank Capacity | 6.7 gal (25 L) |
| Engine Model | D6J |
| Gross Power | 173 hp (129.1 kw) |
| Net Power | 169 hp (126.1 kw) |
| Displacement | 347.9 cu in (5.7 L) |
| Net Torque | 627 lb ft (850 Nm) |
| Bore | 3.9 in (98 mm) |
| Stroke | 5 in (126 mm) |
Capacities
| Front Axle | 579.8 cu in (9.5 L) |
| Hydraulic Tank - Total System | 79.3 gal (300 L) |
| Fuel Tank | 78 gal (295 L) |
| Hydraulic Tank | 43.6 gal (165 L) |
| Rear Axle | 3.4 gal (12.5 L) |
| Transmission | 0.7 gal (2.5 L) |
| Engine Oil | 6.7 gal (25 L) |
| Engine Coolant | 8.8 gal (33 L) |
Hydraulic System
| Maximum Flow -Servo Pump, Low Noise Gear Pump | 4 gal/min (15 L/min) |
| Main Pump- Low Noise Axial Piston Pump-Max Flow | 99.1 gal/min (375 L/min) |
| Implement | 5439 psi (37500.6 kPa) |
| Pilot Circuit | 508 psi (3502.6 kPa) |
| Steering Pump | 12.7 gal/min (48 L/min) |
