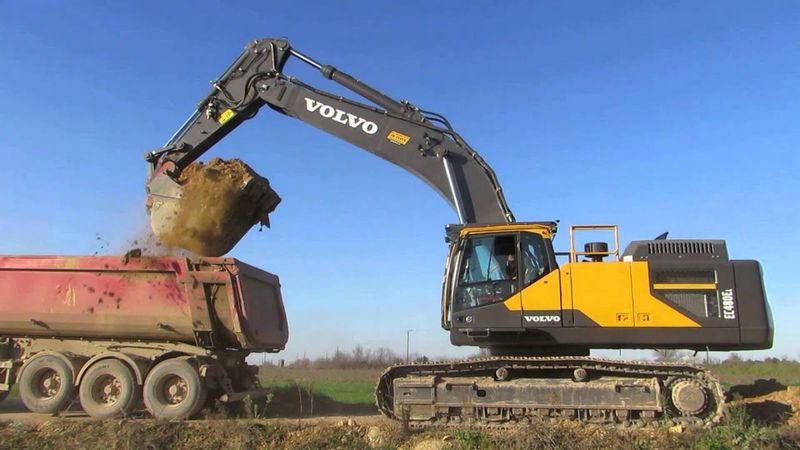

Volvo EC480E
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 34.73 ft in (10584 mm) |
| Max Vertical Wall Digging Depth | 18.93 ft in (5769 mm) |
| Max Digging Depth | 21.61 ft in (6586 mm) |
| Max.Dumping Height | 22.83 ft in (6957 mm) |
| Min - Front Slew Radius | 15.62 ft in (4758 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 6.5 ME (m), 21.4 ft in / Arm - 2.55 m, 8.4 ft in |
| Max Digging Reach | 35.88 ft in (10934 mm) |
| Max Digging Reach On Ground | 35.08 ft in (10690 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 34.72 ft in (10580 mm) |
| Max Vertical Wall Digging Depth | 20.21 ft in (6160 mm) |
| Max Digging Depth | 23.09 ft in (7036 mm) |
| Max Digging Reach On Ground | 36.28 ft in (11058 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 6.5 ME (m), 21.4 ft in / Arm - 3.0 m, 9.10 ft in |
| Min - Front Slew Radius | 15.57 ft in (4743 mm) |
| Max.Dumping Height | 23.02 ft in (7015 mm) |
| Max Digging Reach | 37.06 ft in (11294 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 35.8 ft in (10910 mm) |
| Max Vertical Wall Digging Depth | 20.48 ft in (6242 mm) |
| Max Digging Depth | 23.06 ft in (7028 mm) |
| Boom/Stick Option (Hex) 3 | Boom - 7.0 m, 2.3 ft in / Arm - 2.55 m, 8.4 ft in |
| Max Digging Reach On Ground | 36.82 ft in (11221 mm) |
| Min - Front Slew Radius | 16.54 ft in (5040 mm) |
| Max.Dumping Height | 23.99 ft in (7310 mm) |
| Max Digging Reach | 37.58 ft in (11453 mm) |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 35.8 ft in (10909 mm) |
| Max Digging Depth | 24.54 ft in (7478 mm) |
| Max.Dumping Height | 24.19 ft in (7372 mm) |
| Boom/Stick Option (Hex) 4 | Boom - 7.0 m, 2.3 ft in / Arm - 3.0 m, 9.10 ft in |
| Min - Front Slew Radius | 16.85 ft in (5135 mm) |
| Max Digging Reach | 38.77 ft in (11817 mm) |
| Max Vertical Wall Dig Depth | 21.12 ft in (6436 mm) |
| Max Digging Reach On Ground | 38.04 ft in (11592 mm) |
Boom/Stick Option (Hex) 5
| Max Cutting Height | 36.3 ft in (11064 mm) |
| Max Digging Depth | 25.69 ft in (7828 mm) |
| Max - Dumping Height | 24.7 ft in (7526 mm) |
| Boom/Stick Option (Hex) 5 | Boom - 7.0 m, 2.3 ft in / Arm - 3.35 m,11 ft in |
| Max - Digging Reach | 39.85 ft in (12146 mm) |
| Max - Digging Reach On Ground | 39.14 ft in (11927 mm) |
| Max Vertical Wall Dig Depth | 22.23 ft in (6774 mm) |
| Min - Front Slew Radius | 16.7 ft in (5088 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 36.86 ft in (11234 mm) |
| Max Digging Depth | 27.49 ft in (8378 mm) |
| Max - Digging Reach On Ground | 40.8 ft in (12434 mm) |
| Max - Digging Reach | 41.49 ft in (12645 mm) |
| Min- Front Slew Radius | 16.57 ft in (5050 mm) |
| Max Vertical Wall Dig Depth | 23.67 ft in (7214 mm) |
| Max - Dumping Height | 25.31 ft in (7713 mm) |
| Boom/Stick Option (Hex) 6 | Boom - 7.0 m, 2.3 ft in / Arm - 3.9 m,11 ft in |
Dimensions
| Tail Swing Radius | 12.73 ft in (3880 mm) |
| Counterweight Clearance | 3.97 ft in (1210 mm) |
| Ground Clearance (Minimum) | 1.69 ft in (515 mm) |
| Overall Width -Upper Structure | 9.81 ft in (2990 mm) |
| Removal Counterweight Clearance | 3.96 ft in (1205 mm) |
| Shoe Width | 2.96 ft in (900 mm) |
| Track Length | 211.42 in (5370 mm) |
| Overall Height (To Top Of Boom) | 13.31 ft in (4055 mm) |
| Overall Height (To Top Of Cab) | 10.77 ft in (3280 mm) |
| Overall Length | 38.37 ft in (11695 mm) |
Undercarriage
| Number Of Bottom Rollers Per Side | 2 x 9 |
| Number Of Top Rollers Per Side | 2 x 2 |
| Shoe Width (Standard) | 23.63 in (600 mm) |
| Link Pitch | 8.5 in (215.9 mm) |
Electrical System
| Alternator | 28/80 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 |
| Battery | 200 (Ah) |
Swing System
| Max - Slew Speed | 7 rpm |
| Max - Slew Torque | 203198 lb ft (275499.6 Nm) |
Engine
| Max Power | 1800 rpm |
| Number Of Cylinders | 6 |
| Rated Engine Speed | 1350 rpm |
| Engine Model | Volvo D13J |
| Net Power | 379.6 hp (283 kw) |
| Gross Power | 380.9 hp (284 kw) |
| Max Torque | 1422.1 lb ft (1928 Nm) |
| Displacement | 781.2 cu in (12.8 L) |
| Bore | 5.2 in (131 mm) |
| Stroke | 6.3 in (158 mm) |
Capacities
| Travel Reduction | 4 gal (15 L) |
| Slew Reduction | 3.2 gal (12 L) |
| Fuel Tank | 179.7 gal (680 L) |
| Hydraulic Tank | 71.4 gal (270 L) |
| Diesel Exhaust Fluid (Def) Tank | 16.6 gal (62.5 L) |
| Hydraulic System | 138.7 gal (525 L) |
| Engine Oil | 11.1 gal (42 L) |
| Engine Coolant | 15.9 gal (60 L) |
Performance
| Travel Speed Low | 2 mph (3.2 km/h) |
| Gradeability | 35 % |
| Travel Speed - High | 3.3 mph (5.2 km/h) |
| Drawbar Pull Force | 74951.3 lb (333.4 kN) |
Hydraulic System
| Slew Circuit | 3742 psi (25800.2 kPa) |
| Main Pump - Maximum Flow | 198.7 gal/min (752 L/min) |
| Pilot Pump - Maximum Flow | 8.5 gal/min (32 L/min) |
| Implement | 5120 psi (35301.2 kPa) |
| Travel Circuit | 4700 psi (32405.4 kPa) |
| Pilot Circuit | 566 psi (3902.5 kPa) |
