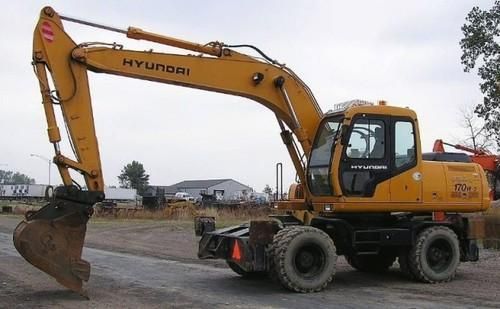

Hyundai R170W-3
Browse All Hyundai or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 28.84 ft in (8790 mm) |
| Shipping Height Of Unit | 10.37 ft in (3160 mm) |
| Max Cutting Height | 28.25 ft in (8610 mm) |
| Max Loading Height | 19.76 ft in (6020 mm) |
| Max Reach Along Ground | 26.91 ft in (8200 mm) |
| Max Vertical Wall Dig Depth | 14.38 ft in (4380 mm) |
| Max Digging Depth | 17.2 ft in (5240 mm) |
| Boom/Stick Option (Mex) 1 | boom w/ stick 1850mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 28.52 ft in (8690 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Cutting Height | 28.94 ft in (8820 mm) |
| Max Loading Height | 20.41 ft in (6220 mm) |
| Max Reach Along Ground | 28.02 ft in (8540 mm) |
| Max Vertical Wall Dig Depth | 16.08 ft in (4900 mm) |
| Max Digging Depth | 18.34 ft in (5590 mm) |
| Boom/Stick Option (Mex) 2 | boom w/ stick 2200mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 9.98 ft in (3040 mm) |
| Shipping Length Of Unit | 29.07 ft in (8860 mm) |
| Max Cutting Height | 29.5 ft in (8990 mm) |
| Max Loading Height | 20.97 ft in (6390 mm) |
| Max Reach Along Ground | 29.2 ft in (8900 mm) |
| Max Vertical Wall Dig Depth | 16.97 ft in (5170 mm) |
| Max Digging Depth | 19.66 ft in (5990 mm) |
| Boom/Stick Option (Mex) 3 | boom w/ stick 2600mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 11.26 ft in (3430 mm) |
| Shipping Length Of Unit | 28.97 ft in (8830 mm) |
| Max Cutting Height | 30.81 ft in (9390 mm) |
| Max Loading Height | 22.15 ft in (6750 mm) |
| Max Reach Along Ground | 31.21 ft in (9510 mm) |
| Max Vertical Wall Dig Depth | 20.08 ft in (6120 mm) |
| Max Digging Depth | 21.63 ft in (6590 mm) |
| Boom/Stick Option (Mex) 4 | boom w/ stick 3200mm |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 8.31 ft in (2530 mm) |
| Overall Width | 8.21 in (2500 mm) |
| Ground Clearance | 1.24 ft in (375 mm) |
| Overall Width - Outriggers Down | 12.08 ft in (3680 mm) |
| Height To Top Of Cab | 10.11 ft in (3080 mm) |
| Upper Structure Clearance | 4.17 ft in (1270 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | B5.9-C |
| Gross Power | 126 hp (94 kw) |
| Net Power | 116 hp (86.6 kw) |
| Displacement | 358.9 cu in (5.9 L) |
| Net Torque | 390 lb ft (528.8 Nm) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 66.1 gal (250 L) |
| Operating Weight | 36155.9 lb (16400 kg) |
| Cooling System Fluid Capacity | 9.3 gal (35 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Front Diff Fluid Capacity | 3.7 gal (14 L) |
| Rear Diff Fluid Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 63.5 gal (240 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Type | two variable displacement piston pumps |
| Hydraulic Pump Flow Capacity | 87.2 gal/min (330 L/min) |
| Tire Size | 10-20-14PR dual type |
Swing Mechanism
| Swing Speed | 11.5 rpm |
Transmission
| Transmission Type | 4-wheel hydrostatic drive |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 18.7 mph (30 km/h) |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.4 yd3 (1.1 m3) |
