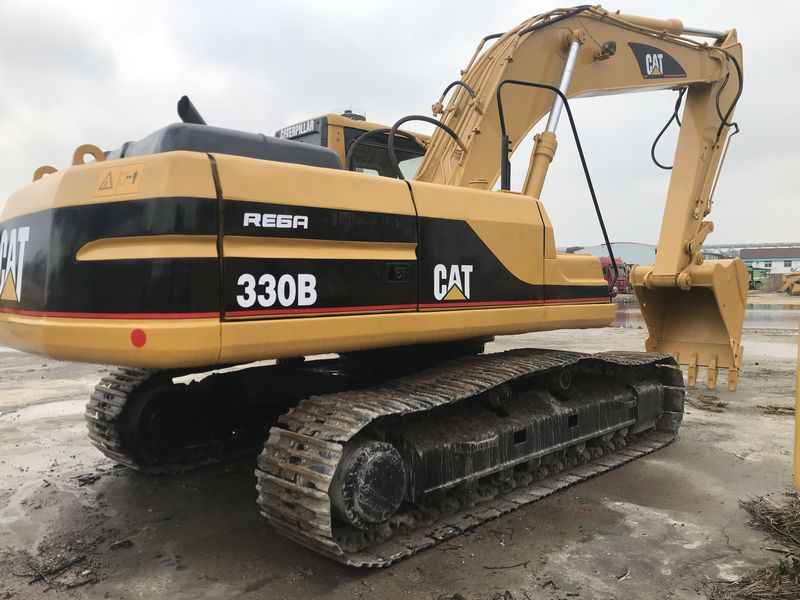

Caterpillar 330B LN
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.59 ft in (11150 mm) |
| Shipping Height Of Unit | 11.68 ft in (3560 mm) |
| Max Cutting Height | 35.21 ft in (10730 mm) |
| Max Loading Height | 25.04 ft in (7630 mm) |
| Max Reach Along Ground | 38.13 ft in (11620 mm) |
| Max Vertical Wall Digging Depth | 19.76 ft in (6020 mm) |
| Max Digging Depth | 26.45 ft in (8060 mm) |
| Boom/Stick Option (Hex) 1 | reach boom w/ stick 3900mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.59 ft in (11150 mm) |
| Max Cutting Height | 34.13 ft in (10400 mm) |
| Shipping Height Of Unit | 11.68 ft in (3560 mm) |
| Max Loading Height | 23.99 ft in (7310 mm) |
| Max Reach Along Ground | 36.19 ft in (11030 mm) |
| Max Vertical Wall Digging Depth | 17.59 ft in (5360 mm) |
| Max Digging Depth | 24.48 ft in (7460 mm) |
| Boom/Stick Option (Hex) 2 | reach boom w/ stick 3300mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.59 ft in (11150 mm) |
| Max Cutting Height | 33.57 ft in (10230 mm) |
| Max Loading Height | 23.4 ft in (7130 mm) |
| Shipping Height Of Unit | 11.68 ft in (3560 mm) |
| Max Reach Along Ground | 34.68 ft in (10570 mm) |
| Max Vertical Wall Digging Depth | 16.34 ft in (4980 mm) |
| Max Digging Depth | 22.84 ft in (6960 mm) |
| Boom/Stick Option (Hex) 3 | reach boom w/ stick 2800mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 36.59 ft in (11150 mm) |
| Shipping Height Of Unit | 11.68 ft in (3560 mm) |
| Max Cutting Height | 32.52 ft in (9910 mm) |
| Max Loading Height | 21.63 ft in (6590 mm) |
| Max Reach Along Ground | 32.85 ft in (10010 mm) |
| Max Digging Depth | 21.07 ft in (6420 mm) |
| Max Vertical Wall Dig Depth | 15.82 ft in (4820 mm) |
| Boom/Stick Option (Hex) 4 | reach boom w/ stick 2200mm |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 35.47 ft in (10810 mm) |
| Shipping Height Of Unit | 11.75 ft in (3580 mm) |
| Max Cutting Height | 33.37 ft in (10170 mm) |
| Max Loading Height | 22.18 ft in (6760 mm) |
| Max Reach Along Ground | 33.27 ft in (10140 mm) |
| Max Digging Depth | 21.33 ft in (6500 mm) |
| Boom/Stick Option (Hex) 5 | mass boom w/ stick 2600mm |
| Max Vertical Wall Dig Depth | 17.66 ft in (5380 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 31.63 ft in (9640 mm) |
| Max Loading Height | 20.81 ft in (6340 mm) |
| Shipping Length Of Unit | 35.47 ft in (10810 mm) |
| Max Reach Along Ground | 31.63 ft in (9640 mm) |
| Shipping Height Of Unit | 11.75 ft in (3580 mm) |
| Max Digging Depth | 20.02 ft in (6100 mm) |
| Max Vertical Wall Dig Depth | 14.38 ft in (4380 mm) |
| Boom/Stick Option (Hex) 6 | mass bomo w/ stick 2200mm |
Dimensions
| Ground Clearance | 1.68 ft in (510 mm) |
| Height To Top Of Cab | 10.67 ft in (3250 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 13.26 ft in (4040 mm) |
| Tail Swing Radius | 11.49 ft in (3500 mm) |
| Removal Counterweight Clearance | 4.14 ft in (1260 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Drawbar Pull | 60250 lb (268.01 kN) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
Engine
| Engine Model | 3306TA |
| Gross Power | 222 hp (165.6 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 74362 lb (33730 kg) |
| Fuel Capacity | 148 gal (560 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 126.9 gal/min (480 L/min) |
