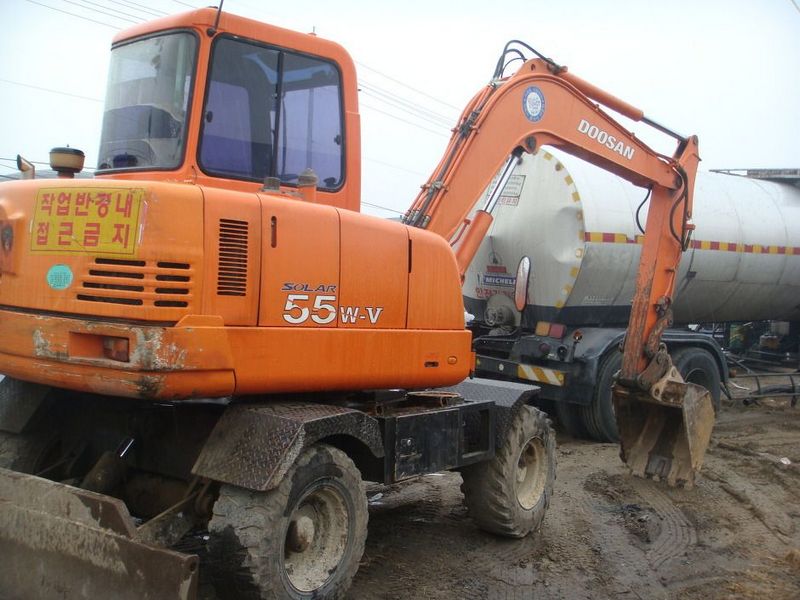

Doosan S55WV
Browse All Doosan or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 20.3 ft in (6187 mm) |
| Shipping Height Of Unit | 9.38 ft in (2856 mm) |
| Max Cutting Height | 19.43 ft in (5920 mm) |
| Max Loading Height | 13.82 ft in (4212 mm) |
| Max Reach Along Ground | 19.2 ft in (5850 mm) |
| Max Vertical Wall Dig Depth | 9.09 ft in (2770 mm) |
| Max Digging Depth | 11.47 ft in (3496 mm) |
| Boom/Stick Option (Mex) 1 | Boom 9'10" (3000mm) / Stick 5'3" (1600mm) |
Dimensions
| Wheelbase | 6.89 ft in (2100 mm) |
| Tail Swing Radius | 5.42 ft in (1650 mm) |
| Overall Width | 6.3 in (1920 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Height To Top Of Cab | 9.38 ft in (2856 mm) |
| Upper Structure Clearance | 3.22 ft in (980 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV94L-PDBWE |
| Gross Power | 56.8 hp (42.4 kw) |
| Net Power | 54.1 hp (40.4 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 186.4 cu in (3.1 L) |
| Torque Measured @ | 1600 rpm |
| Net Torque | 151 lb ft (204.8 Nm) |
| Aspiration | Natural |
Operational
| Fuel Capacity | 31.8 gal (120 L) |
| Operating Weight | 12235.7 lb (5550 kg) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Engine Oil Capacity | 2.5 gal (9.2 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 60 amps |
| Hydraulic System Relief Valve Pressure | 3271 psi (22552.8 kPa) |
| Hydraulic Pump Type | 2x piston |
| Hydraulic Pump Flow Capacity | 31.8 gal/min (120 L/min) |
| Tire Size | 12-16.5-12PR |
Swing Mechanism
| Swing Speed | 9.1 rpm |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 15.6 mph (25 km/h) |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
