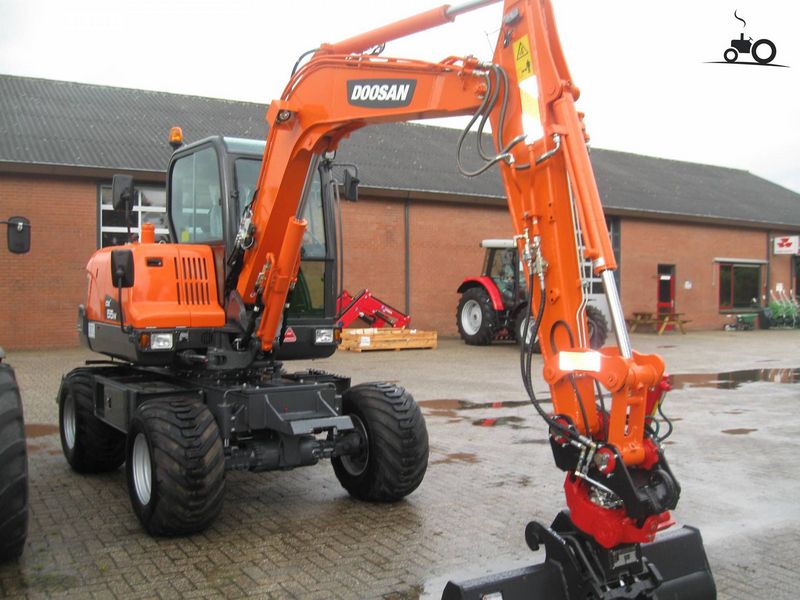

Doosan DX55W
Browse All Doosan or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Cutting Height | 19.62 ft in (5980 mm) |
| Max Loading Height | 14 ft in (4265 mm) |
| Max Digging Depth | 11.47 ft in (3495 mm) |
| Boom/Stick Option (Mex) 1 | Boom 9'10" (3000mm)/Stick 5'3" (1600mm) |
Boom/Stick Option (Mex) 2
| Max Cutting Height | 20.25 ft in (6170 mm) |
| Max Loading Height | 14.62 ft in (4455 mm) |
| Max Digging Depth | 12.46 ft in (3795 mm) |
| Boom/Stick Option (Mex) 2 | Boom 9'10" (3000mm)/Stick 6'3" (1900mm) |
Dimensions
| Wheelbase | 6.89 ft in (2100 mm) |
| Overall Width | 6.3 in (1920 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Height To Top Of Cab | 9.37 ft in (2855 mm) |
| Upper Structure Clearance | 3.22 ft in (980 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV98-E |
| Net Power | 54.7 hp (40.8 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 202.5 cu in (3.4 L) |
| Torque Measured @ | 1550 rpm |
| Net Torque | 152 lb ft (206 Nm) |
Operational
| Fuel Capacity | 31.8 gal (120 L) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Engine Oil Capacity | 3.1 gal (11.6 L) |
| Hydraulic System Fluid Capacity | 39.1 gal (147.8 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 60 amps |
| Hydraulic System Relief Valve Pressure | 3263.2 psi (22500 kPa) |
| Hydraulic Pump Type | 2 variable tandem type pumps |
| Hydraulic Pump Flow Capacity | 31.8 gal/min (120 L/min) |
| Oscillating Axle Angle | 10 degrees |
| Tire Size | 12-16.5-12PR(OTR) |
Swing Mechanism
| Swing Speed | 8.7 rpm |
Transmission
| Transmission Type | hydrostatic mechanical shift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 18.7 mph (30 km/h) |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.3 yd3 (0.2 m3) |
