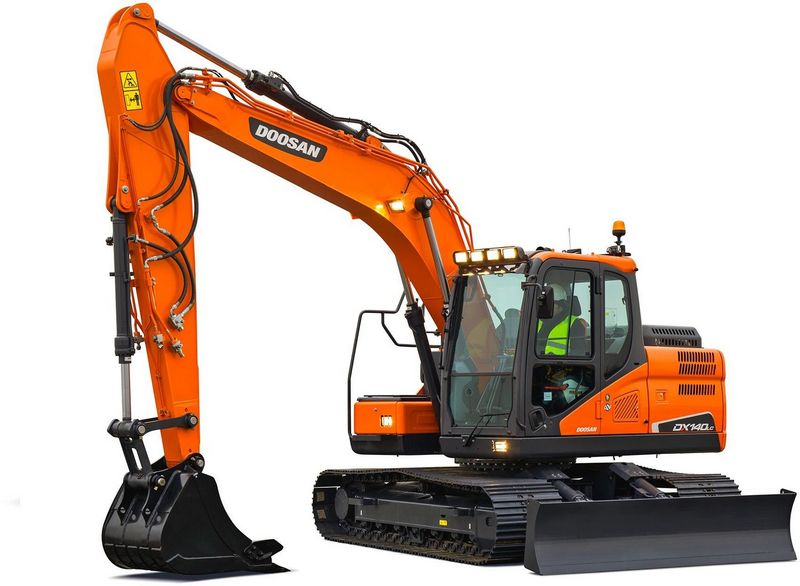

Doosan DX140LC
Browse All Doosan or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 25.23 ft in (7690 mm) |
| Shipping Height Of Unit | 8.44 ft in (2570 mm) |
| Max Cutting Height | 26.89 ft in (8195 mm) |
| Max Loading Height | 19.28 ft in (5875 mm) |
| Max Reach Along Ground | 25.23 ft in (7690 mm) |
| Max Vertical Wall Digging Depth | 12.5 ft in (3810 mm) |
| Max Digging Depth | 17.23 ft in (5250 mm) |
| Boom/Stick Option (Hex) 1 | Boom 15'1" (4600mm)/Stick 6'11" (2100mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 25.2 ft in (7680 mm) |
| Max Cutting Height | 28.47 ft in (8675 mm) |
| Shipping Height Of Unit | 8.9 ft in (2710 mm) |
| Max Loading Height | 20.67 ft in (6300 mm) |
| Max Reach Along Ground | 26.76 ft in (8156 mm) |
| Max Vertical Wall Digging Depth | 14.97 ft in (4560 mm) |
| Max Digging Depth | 18.53 ft in (5645 mm) |
| Boom/Stick Option (Hex) 2 | Boom 15'1" (4600mm)/Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 25.07 ft in (7640 mm) |
| Max Cutting Height | 28.7 ft in (8745 mm) |
| Max Loading Height | 21.05 ft in (6415 mm) |
| Shipping Height Of Unit | 10.14 ft in (3090 mm) |
| Max Reach Along Ground | 28.02 ft in (8540 mm) |
| Max Vertical Wall Digging Depth | 15.85 ft in (4830 mm) |
| Max Digging Depth | 20.18 ft in (6150 mm) |
| Boom/Stick Option (Hex) 3 | Boom 15'1" (4600mm)/Stick 9'10" (3000mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 26.45 ft in (8060 mm) |
| Shipping Height Of Unit | 8.72 ft in (2655 mm) |
| Max Cutting Height | 28.94 ft in (8820 mm) |
| Max Loading Height | 21.07 ft in (6420 mm) |
| Max Reach Along Ground | 27.02 ft in (8235 mm) |
| Max Digging Depth | 17.85 ft in (5440 mm) |
| Max Vertical Wall Dig Depth | 15.8 ft in (4815 mm) |
| Boom/Stick Option (Hex) 4 | Boom 16'4" (4988mm)/Stick 6'11" (2100mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 26.3 ft in (8015 mm) |
| Shipping Height Of Unit | 9.09 ft in (2770 mm) |
| Max Cutting Height | 30.3 ft in (9235 mm) |
| Max Loading Height | 22.35 ft in (6810 mm) |
| Max Reach Along Ground | 28.43 ft in (8665 mm) |
| Max Digging Depth | 19.2 ft in (5850 mm) |
| Max Vertical Wall Dig Depth | 17.77 ft in (5415 mm) |
| Boom/Stick Option (Hex) 5 | Boom 16'4" (4988mm)/Stick 8'2" (2500mm) |
Dimensions
| Ground Clearance | 1.35 ft in (410 mm) |
| Height To Top Of Cab | 9.1 ft in (2773 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 9.96 ft in (3034 mm) |
| Tail Swing Radius | 7.22 ft in (2200 mm) |
| Removal Counterweight Clearance | 2.94 ft in (894 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 5.12 psi (35.31 kPa) |
| Max Travel Speed | 2.93 mph (4.7 km/h) |
| Number Of Track Rollers Per Side | 7 |
| Number Of Shoes Per Side | 46 |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2252 |
| Engine Model | DL06 |
| Net Power | 95 hp (70.9 kw) |
| Power Measured @ | 1850 rpm |
| Max Torque | 321.6 lb ft (436 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | turbocharged with air to air intercooler |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 30864 lb (13999.7 kg) |
| Fuel Capacity | 70.6 gal (267 L) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Hydraulic System Fluid Capacity | 39.1 gal (148 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.1 gal (3.8 L) |
| Alternator Supplied Amperage | 60 amps |
| Hydraulic System Relief Valve Pressure | 4699.3 psi (32400 kPa) |
| Hydraulic Pump Flow Capacity | 60.3 gal/min (228 L/min) |
Swing Mechanism
| Swing Speed | 10.7 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.6 m3) |
