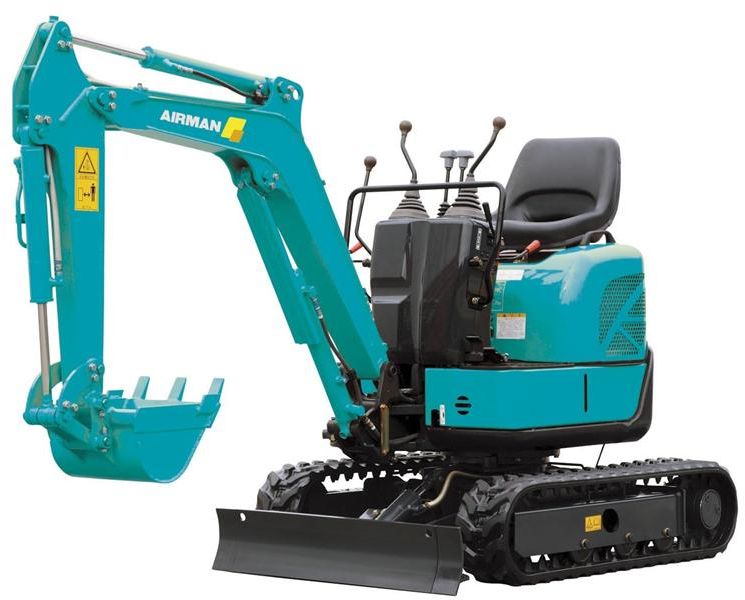

Airman AX10U-4
Browse All Airman or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 9.65 ft in (2940 mm) |
| Shipping Height Of Unit | 4.76 ft in (1450 mm) |
| Max Loading Height | 7.29 ft in (2220 mm) |
| Max Reach Along Ground | 10.31 ft in (3140 mm) |
| Max Vertical Wall Digging Depth | 5.48 ft in (1670 mm) |
| Max Digging Depth | 6.67 ft in (2030 mm) |
Dimensions
| Width To Outside Of Tracks | 3.29 ft in (1000 mm) |
| Length Of Track On Ground | 4.5 ft in (1370 mm) |
| Ground Clearance | 0.43 ft in (130 mm) |
| Tail Swing Radius | 1.71 ft in (520 mm) |
Undercarriage
| Shoe Size | 7.09 in (180 mm) |
| Max Travel Speed | 1.25 mph (2 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV70 |
| Gross Power | 12.8 hp (9.5 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 52.2 cu in (0.9 L) |
Operational
| Operating Weight | 2160.6 lb (980 kg) |
| Hydraulic System Relief Valve Pressure | 2610.7 psi (18000 kPa) |
| Hydraulic Pump Flow Capacity | 5.6 gal/min (21 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
