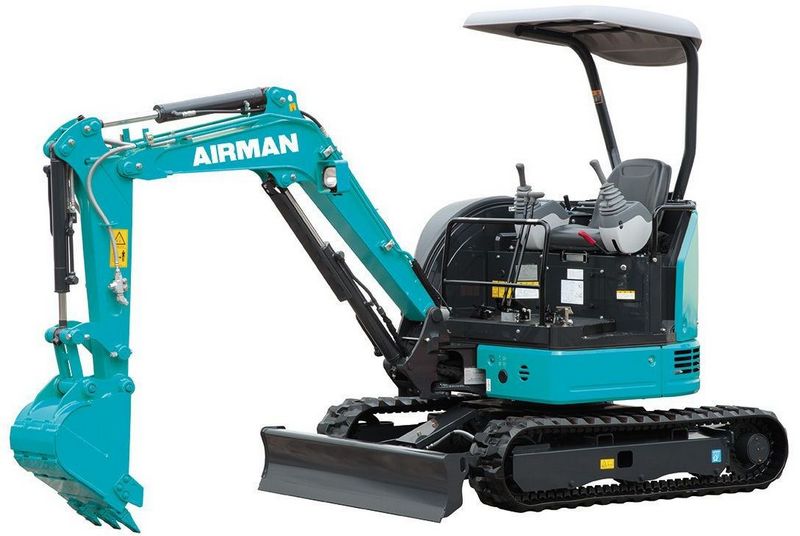

Airman AX20U
Browse All Airman or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.7 ft in (3870 mm) |
| Shipping Height Of Unit | 7.71 ft in (2350 mm) |
| Max Loading Height | 9.39 ft in (2860 mm) |
| Max Reach Along Ground | 13.78 ft in (4200 mm) |
| Max Vertical Wall Digging Depth | 6.24 ft in (1900 mm) |
| Max Digging Depth | 7.71 ft in (2350 mm) |
Dimensions
| Width To Outside Of Tracks | 4.76 ft in (1450 mm) |
| Length Of Track On Ground | 4.76 ft in (1450 mm) |
| Ground Clearance | 0.97 ft in (295 mm) |
| Tail Swing Radius | 2.22 ft in (675 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2353 |
| Engine Model | 3YE1 |
| Gross Power | 18.8 hp (14 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 183.1 cu in (3 L) |
Operational
| Operating Weight | 4387.2 lb (1990 kg) |
| Hydraulic System Relief Valve Pressure | 3045.8 psi (21000 kPa) |
| Hydraulic Pump Flow Capacity | 14.6 gal/min (55.2 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
