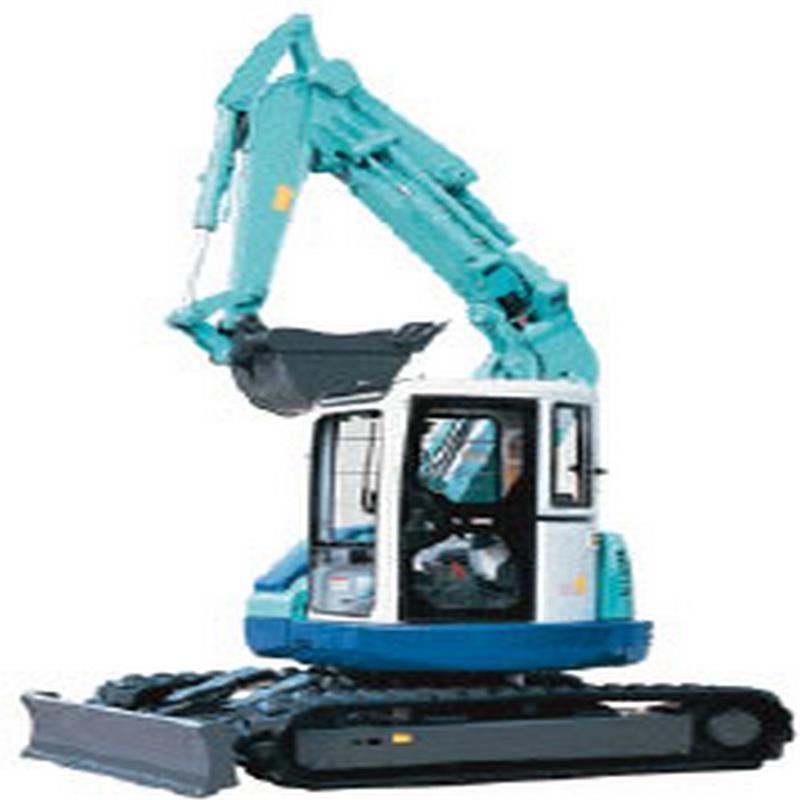

IHI 70Z
Browse All IHI or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18.18 ft in (5538.22 mm) |
| Shipping Height Of Unit | 8.5 ft in (2590.8 mm) |
| Max Cutting Height | 23.58 ft in (7187.19 mm) |
| Max Loading Height | 16.93 ft in (5157.22 mm) |
| Max Vertical Wall Digging Depth | 10.83 ft in (3300.99 mm) |
| Max Digging Depth | 14.08 ft in (4291.59 mm) |
Dimensions
| Height To Top Of Cab | 8.5 ft in (2590.8 mm) |
| Tail Swing Radius | 3.58 ft in (1091.19 mm) |
| Removal Counterweight Clearance | 2.33 ft in (710.19 mm) |
Undercarriage
| Shoe Size | 18 in (457.2 mm) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
| Ground Pressure | 4.6 psi (31.72 kPa) |
Engine
| Engine Make | 2353 |
| Engine Model | AA4JGI |
| Gross Power | 57 hp (42.6 kw) |
Operational
| Operating Weight | 16055 lb (7282.5 kg) |
| Fuel Capacity | 19.8 gal (75 L) |
| Hydraulic System Relief Valve Pressure | 3555 psi (24510.9 kPa) |
| Hydraulic Pump Flow Capacity | 52 gal/min (196.9 L/min) |
Swing Mechanism
| Swing Speed | 9.2 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
