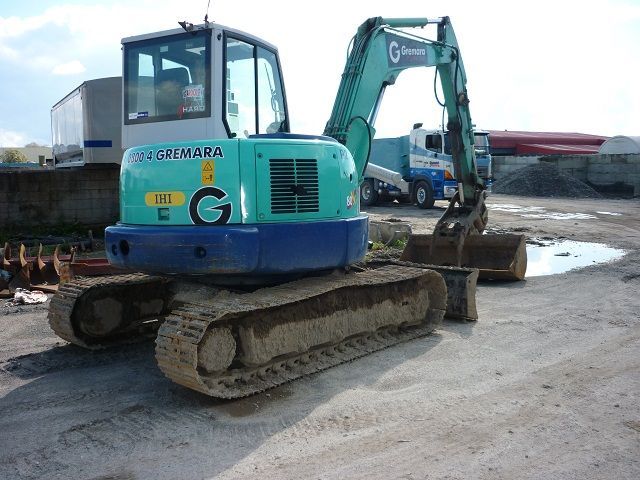

IHI 80NX-3
Browse All IHI or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.68 ft in (5995.42 mm) |
| Shipping Height Of Unit | 8.5 ft in (2590.8 mm) |
| Max Cutting Height | 22.25 ft in (6781.8 mm) |
| Max Loading Height | 15.58 ft in (4748.79 mm) |
| Max Vertical Wall Digging Depth | 10.83 ft in (3300.99 mm) |
| Max Digging Depth | 14.08 ft in (4291.59 mm) |
Dimensions
| Width To Outside Of Tracks | 6.92 ft in (2109.22 mm) |
| Height To Top Of Cab | 8.5 ft in (2590.8 mm) |
| Tail Swing Radius | 4.25 ft in (1295.4 mm) |
| Removal Counterweight Clearance | 2.25 ft in (685.8 mm) |
Undercarriage
| Shoe Size | 18 in (457.2 mm) |
| Track Gauge | 5.42 ft in (1652.02 mm) |
| Ground Pressure | 5.2 psi (35.86 kPa) |
| Max Travel Speed | 2.7 mph (4.35 km/h) |
Engine
| Engine Make | 2353 |
| Engine Model | AA-4JG1 |
| Gross Power | 56.3 hp (42 kw) |
Operational
| Operating Weight | 18100 lb (8210.1 kg) |
| Fuel Capacity | 18.5 gal (70.1 L) |
| Hydraulic System Relief Valve Pressure | 3550 psi (24476.4 kPa) |
| Hydraulic Pump Flow Capacity | 51.8 gal/min (196.1 L/min) |
Swing Mechanism
| Swing Speed | 9.2 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
