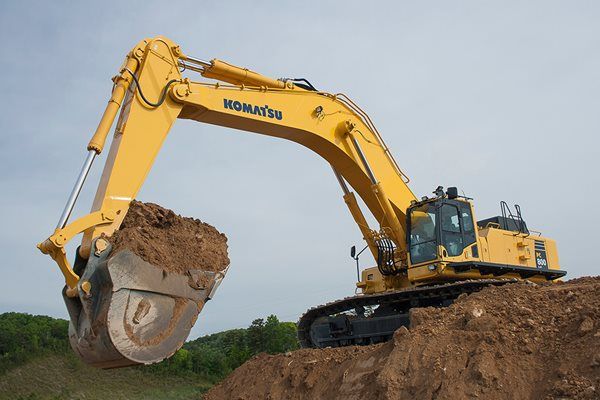

Komatsu PC800LC-8
Browse All Komatsu or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 60.37 ft in (18400 mm) |
| Max Reach Along Ground | 55.12 ft in (16800 mm) |
| Max Depth | 18.5 ft in (5638.8 mm) |
| Boom/Stick Option (Mat) 1 | 2-piece front 16.8m 55' |
Boom/Stick Option (Mat) 2
| Max Height | 72.84 ft in (22200 mm) |
| Max Reach Along Ground | 67.92 ft in (20700 mm) |
| Max Depth | 25 ft in (7620 mm) |
| Boom/Stick Option (Mat) 2 | 2-piece front 20.7m 68' |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-5 |
| Gross Power | 496.2 hp (370 kw) |
| Net Power | 486.8 hp (363 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 930.1 cu in (15.3 L) |
| Aspiration | turbocharged, aftercooled |
Operational
| Operating Weight W/O Attachment | 196958.8 lb (89339 kg) |
| Fuel Capacity | 258.9 gal (980 L) |
| Cooling System Fluid Capacity | 26.5 gal (100 L) |
| Engine Oil Capacity | 15.4 gal (58 L) |
| Hydraulic System Fluid Capacity | 116.3 gal (440 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Max Drawbar Pull | 125660 lb (56998.5 kg) |
Swing Mechanism
| Swing Torque | 209461 lb ft (283991 Nm) |
| Swing Speed | 6.8 rpm |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed | 2.7 mph (4.2 km/h) |
Track Undercarriage
| Shoe Size | 31.9 in (810 mm) |
| Track Gauge | 11.5 ft in (3500 mm) |
| Number Of Shoes Per Side | 51 |
| Number Of Track Rollers Per Side | 9 |
| Length Of Track On Ground | 16.5 ft in (5020 mm) |
Hydraulic
| Pump Type | Variable-capacity piston pumps |
| Pump Capacity | 261.1 gal/min (988 L/min) |
| Relief Pressure | 4980 psi (34335.9 kPa) |
