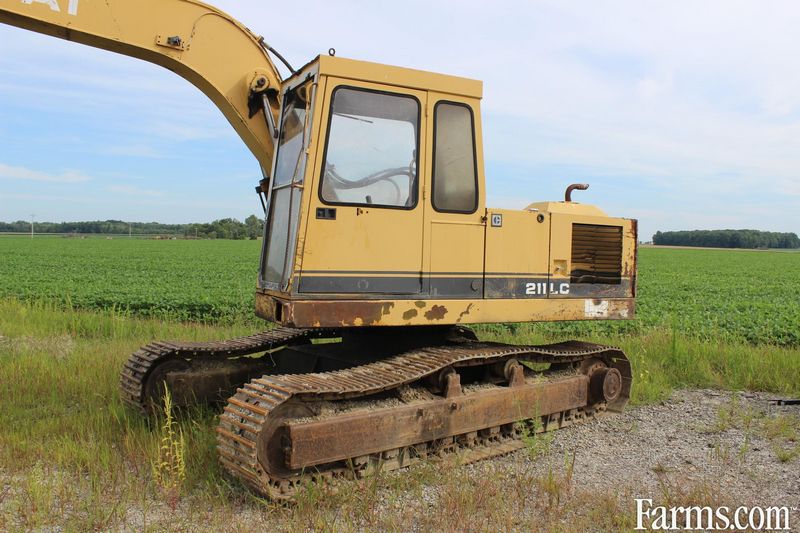

Caterpillar 211
Browse All Caterpillar or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 21 ft in (6400 mm) |
| Max Loading Height | 15.1 ft in (4600 mm) |
| Max Reach Along Ground | 25.07 ft in (7640 mm) |
| Max Digging Depth | 15.92 ft in (4850 mm) |
| Boom/Stick Option (Hex) 1 | One-Piece Boom/Stick 5'3" (1600mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 21.43 ft in (6530 mm) |
| Max Reach Along Ground | 27.33 ft in (8330 mm) |
| Max Digging Depth | 18.25 ft in (5560 mm) |
| Boom/Stick Option (Hex) 2 | One-Piece Boom/Stick 7'6.5" (2300mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 21 ft in (6400 mm) |
| Max Reach Along Ground | 28.58 ft in (8710 mm) |
| Max Digging Depth | 19.43 ft in (5920 mm) |
| Boom/Stick Option (Hex) 3 | One-Piece Boom/Stick 9'2" (2800mm) |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 25 ft in (7620 mm) |
| Max Loading Height | 18.25 ft in (5560 mm) |
| Max Reach Along Ground | 26.09 ft in (7950 mm) |
| Max Digging Depth | 14.83 ft in (4520 mm) |
| Boom/Stick Option (Hex) 4 | Two-Piece Boom/Stick 5'3" (1600mm) |
Boom/Stick Option (Hex) 5
| Max Cutting Height | 25.99 ft in (7920 mm) |
| Max Reach Along Ground | 28.25 ft in (8610 mm) |
| Max Digging Depth | 17 ft in (5180 mm) |
| Boom/Stick Option (Hex) 5 | Two-Piece Boom/Stick 7'6.5" (2300mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 26.15 ft in (7970 mm) |
| Max Reach Along Ground | 29.34 ft in (8940 mm) |
| Max Digging Depth | 18.51 ft in (5640 mm) |
| Boom/Stick Option (Hex) 6 | TwoOne-Piece Boom/Stick 9'2" (2800mm) |
Dimensions
| Ground Clearance | 1.47 ft in (446 mm) |
| Height To Top Of Cab | 10.02 ft in (3054 mm) |
| Width To Outside Of Tracks | 7.86 ft in (2395 mm) |
| Length Of Track On Ground | 9.9 ft in (3015 mm) |
| Tail Swing Radius | 6.89 ft in (2100 mm) |
| Removal Counterweight Clearance | 3.65 ft in (1111 mm) |
Undercarriage
| Track Gauge | 6.22 ft in (1895 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 2.49 mph (4 km/h) |
| Drawbar Pull | 15354.46 lb (68.3 kN) |
| Ground Pressure | 6.24 psi (43 kPa) |
Engine
| Engine Make | 2351 |
| Engine Model | T4.236 |
| Gross Power | 93.9 hp (70 kw) |
| Displacement | 235.6 cu in (3.9 L) |
Operational
| Operating Weight | 32628.5 lb (14800 kg) |
| Fuel Capacity | 64.8 gal (245 L) |
| Hydraulic System Fluid Capacity | 87.2 gal (330 L) |
| Hydraulic System Relief Valve Pressure | 4351.2 psi (30000 kPa) |
| Hydraulic Pump Flow Capacity | 57.1 gal/min (216 L/min) |
