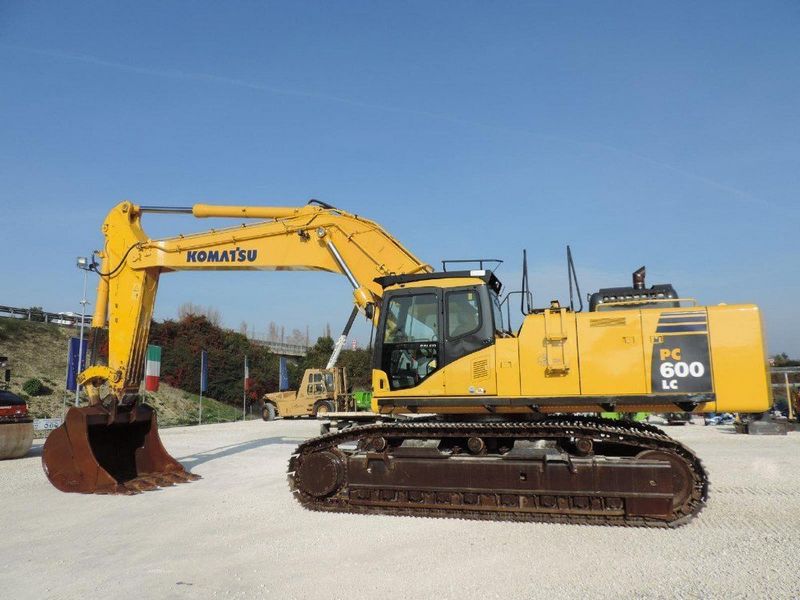

Komatsu PC600LC-8
Browse All Komatsu or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 60.7 ft in (18500 mm) |
| Max Reach Along Ground | 55.12 ft in (16800 mm) |
| Max Depth | 19 ft in (5791.2 mm) |
| Boom/Stick Option (Mat) 1 | 2-piece front 16.8m 55' |
Boom/Stick Option (Mat) 2
| Max Height | 61.03 ft in (18600 mm) |
| Max Reach Along Ground | 60.04 ft in (18300 mm) |
| Max Depth | 27.5 ft in (8382 mm) |
| Boom/Stick Option (Mat) 2 | 2-piece front 18.3m 60' |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-5 |
| Gross Power | 433.2 hp (323 kw) |
| Net Power | 429.2 hp (320 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 930 cu in (15.3 L) |
| Aspiration | turbocharged, aftercooled |
Operational
| Operating Weight W/O Attachment | 148589.4 lb (67399 kg) |
| Fuel Capacity | 232.5 gal (880 L) |
| Cooling System Fluid Capacity | 15.4 gal (58 L) |
| Engine Oil Capacity | 10.6 gal (40 L) |
| Hydraulic System Fluid Capacity | 95.2 gal (360 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Max Drawbar Pull | 93250 lb (42297.5 kg) |
Swing Mechanism
| Swing Torque | 154481 lb ft (209448.2 Nm) |
| Swing Speed | 8.3 rpm |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed | 3.1 mph (4.9 km/h) |
Track Undercarriage
| Shoe Size | 29.6 in (750 mm) |
| Track Gauge | 8.5 ft in (2590 mm) |
| Number Of Shoes Per Side | 52 |
| Number Of Track Rollers Per Side | 9 |
| Length Of Track On Ground | 15.1 ft in (4600 mm) |
Hydraulic
| Pump Type | Variable-capacity piston pumps |
| Pump Capacity | 216.7 gal/min (820 L/min) |
| Relief Pressure | 4980 psi (34335.9 kPa) |
