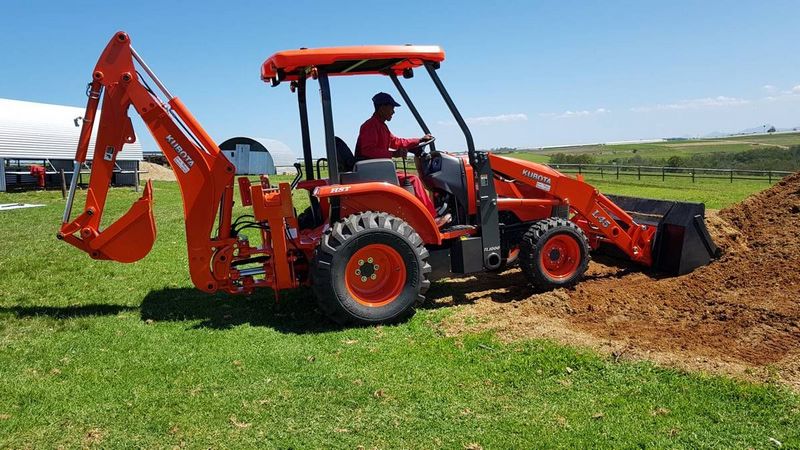

Kubota L45
Browse All Kubota or Loader Backhoe Models
Contents:
Backhoe
| Reach From Swivel - Std | 13.39 ft in (4080 mm) |
| Dig Depth - Std | 10.08 ft in (3070 mm) |
| Bucket Dig Force - Std | 5825 lb (2642.18 kg) |
Dimensions
| Transport Length | 19.72 ft in (6010 mm) |
| Transport Width | 6.04 ft in (1840 mm) |
| Transport Height | 9.49 ft in (2890 mm) |
| Wheelbase | 6.04 ft in (1840 mm) |
| Ground Clearance | 1.02 ft in (310 mm) |
| Height To Top Of Suspended Cab | 7.91 ft in (2410 mm) |
| Rear Tread Range | 55.91 in (1420 mm) |
| Front Wheel Tread Width | 45.67 in (1160 mm) |
Loader
| Clearance At Max Dump Height | 7.49 ft in (2280 mm) |
| Lift Capacity At Full Height | 2848 lb (1291.84 kg) |
| Bucket Width | 72 in (1828.8 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Gross Power | 45 hp (33.6 kw) |
| Net Power | 42.5 hp (31.7 kw) |
| Power Measured @ | 2700 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Fuel Capacity | 11.9 gal (45 L) |
| Max Weight | 7173 lb (3253.7 kg) |
| Hydraulic System Fluid Capacity | 12.3 gal (46.2 L) |
| Oil System Fluid Capacity | 12.3 gal (46.2 L) |
| Cooling System Fluid Capacity | 1.8 gal (6.5 L) |
| Front Axle Fluid Capacity | 1.9 gal (7 L) |
| Tire Size Front - 2wd / 4wd | 27x10.5-15 |
| Rear Tires Size 2wd/4wd | 15x19.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 45 amps |
Transmission
| Transmission Type | Hydrostatic |
Hydraulic
| Pump Type | Open center |
| Pump Flow Capacity | 11.8 gal/min (44.7 L/min) |
