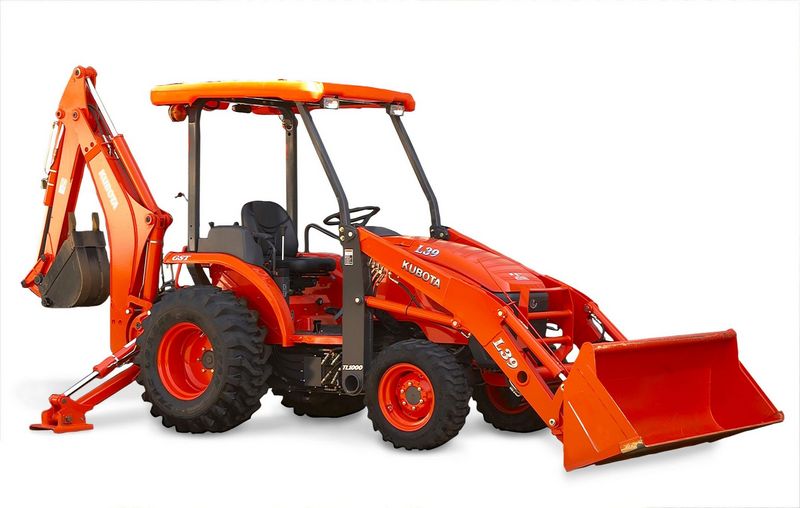

Kubota L39
Browse All Kubota or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 7.61 ft in (2319 mm) |
| Reach From Swivel - Std | 13.41 ft in (4087 mm) |
| Dig Depth - Std | 10.09 ft in (3073 mm) |
| Reach At Load Height - Std | 4.9 ft in (1491 mm) |
| Bucket Dig Force - Std | 5825 lb (2642.18 kg) |
Dimensions
| Transport Width | 5.58 ft in (1699 mm) |
| Transport Height | 8.86 ft in (2700 mm) |
| Wheelbase | 5.75 ft in (1750 mm) |
| Ground Clearance | 1.03 ft in (312 mm) |
Loader
| Clearance At Max Dump Height | 7.5 ft in (2285 mm) |
| Reach At Max Dump Height | 1.71 ft in (520 mm) |
| Dig Depth | 3.94 in (100 mm) |
| Lift Capacity At Full Height | 2766.81 lb (1255 kg) |
| Bucket Breakout Force | 3560.98 lb (15.84 kN) |
Engine
| Number Of Cylinders | 3 |
| Engine Model | L39 |
| Gross Power | 39 hp (29.1 kw) |
| Net Power | 37.4 hp (27.9 kw) |
| Power Measured @ | 2700 rpm |
| Displacement | 111.4 cu in (1.9 L) |
Operational
| Operating Weight 2wd | 6988.7 lb (3170 kg) |
| Fuel Capacity | 10.6 gal (40 L) |
| Turning Radius | 7.3 ft in (2200 mm) |
| Tire Size Front - 2wd / 4wd | 27x10.5-15R4 |
| Rear Tires Size 2wd/4wd | 15-19.5R4 |
Transmission
| Transmission Type | GST |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 8 |
| Max Speed - Forward | 14.3 mph (23 km/h) |
Hydraulic
| Pump Flow Capacity | 23.5 gal/min (88.7 L/min) |
