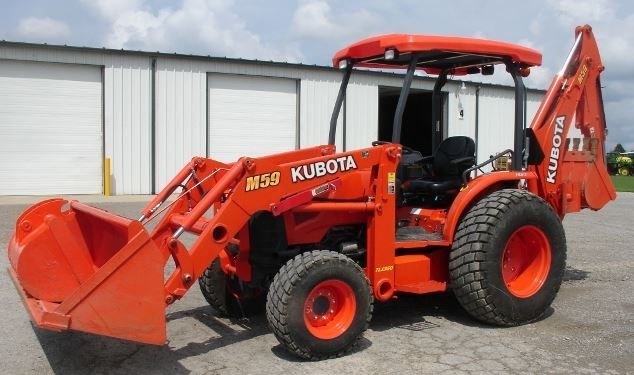

Kubota M59
Browse All Kubota or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 8.83 ft in (2690 mm) |
| Reach From Swivel - Std | 15.66 ft in (4773 mm) |
| Dig Depth - Std | 11.99 ft in (3652 mm) |
| Reach At Load Height - Std | 5.78 ft in (1759 mm) |
| Bucket Dig Force - Std | 7602 lb (3448.21 kg) |
Dimensions
| Transport Width | 6.25 ft in (1905 mm) |
| Transport Height | 10.33 ft in (3146 mm) |
| Wheelbase | 6.73 ft in (2050 mm) |
| Ground Clearance | 1.16 ft in (352 mm) |
Loader
| Clearance At Max Dump Height | 7.92 ft in (2412 mm) |
| Reach At Max Dump Height | 1.91 ft in (582 mm) |
| Dig Depth | 2.72 in (69 mm) |
| Lift Capacity At Full Height | 3968.3 lb (1800 kg) |
| Bucket Breakout Force | 5961.3 lb (26.52 kN) |
Engine
| Number Of Cylinders | 4 |
| Gross Power | 59 hp (44 kw) |
| Net Power | 57 hp (42.6 kw) |
| Power Measured @ | 2700 rpm |
| Displacement | 148.5 cu in (2.5 L) |
Operational
| Operating Weight 2wd | 8344.5 lb (3785 kg) |
| Fuel Capacity | 14.6 gal (55 L) |
| Turning Radius | 9.9 ft in (3000 mm) |
| Tire Size Front - 2wd / 4wd | 10x16.5-R4 |
| Rear Tires Size 2wd/4wd | 17.5L-24 R4 |
Transmission
| Transmission Type | HST Plus |
| Max Speed - Forward | 16 mph (25.6 km/h) |
Hydraulic
| Pump Flow Capacity | 26.7 gal/min (100.9 L/min) |
