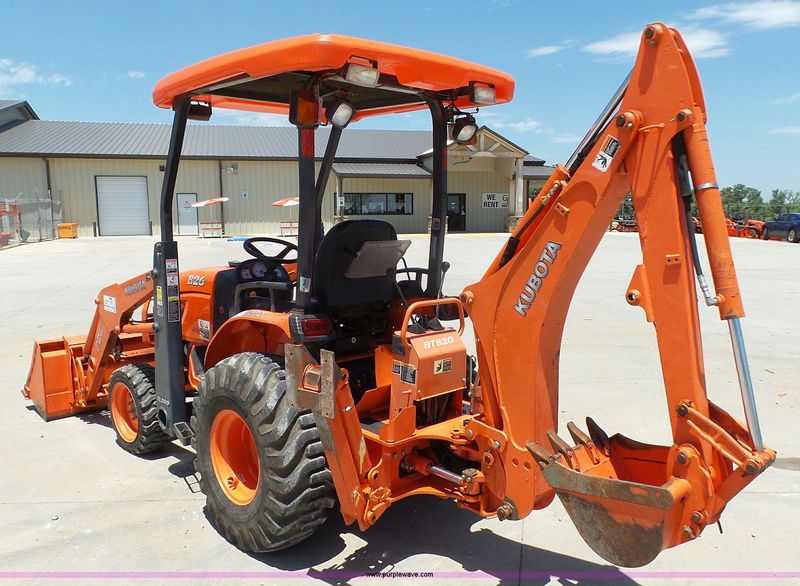

Kubota B26
Browse All Kubota or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 10.83 ft in (3298 mm) |
| Reach From Swivel - Std | 11.16 ft in (3400 mm) |
| Dig Depth - Std | 8.32 ft in (2535 mm) |
| Reach At Load Height - Std | 4.35 ft in (1324 mm) |
| Bucket Dig Force - Std | 4211 lb (1910.08 kg) |
Dimensions
| Transport Length | 16.51 ft in (5030 mm) |
| Transport Width | 4.48 ft in (1365 mm) |
| Transport Height | 7.46 ft in (2273 mm) |
| Wheelbase | 5.19 ft in (1581 mm) |
| Ground Clearance | 0.95 ft in (287 mm) |
| Overall Height | 7.46 ft in (2273 mm) |
| Overall Height (To Top Of Canopy) | 16.52 ft in (5035 mm) |
| Overall Width | 53.75 in (1365 mm) |
Loader
| Clearance At Max Dump Height | 7.19 ft in (2189 mm) |
| Reach At Max Dump Height | 1.87 ft in (567 mm) |
| Dig Depth | 6.97 in (177 mm) |
| Bucket Breakout Force | 2344 lb (10.43 kN) |
| Lift Capacity At Full Height | 1300.73 lb (590 kg) |
| Bucket Width | 59.85 in (1520 mm) |
| Bucket Capacity | 0.36 yd3 (0.27 m3) |
Engine
| Oil Filtration | Spin on cartridge |
| Air Filter Type | Dual paper element |
| Number Of Cylinders | 3 |
| Cooling Method | Liquid |
| Pto Horsepower | 19.5 hp |
| Engine Make | Kubota |
| Engine Model | D1105 |
| Engine Type | Diesel |
| Gross Power | 24.3 hp (18.2 kw) |
| Net Power | 23.1 hp (17.3 kw) |
| Power Measured @ | 2800 rpm |
| Aspiration | Natural |
| Displacement | 68.5 cu in (1.2 L) |
| Bore | 3.1 in (78 mm) |
| Stroke | 3.1 in (78.4 mm) |
| Model Name | B26TLB |
Operational
| Fuel Capacity | 8.2 gal (31 L) |
| Operating Weight 4wd | 4001.4 lb (1815 kg) |
| Turning Radius | 8.3 ft in (2500 mm) |
| Tire Size Front - 2wd / 4wd | 23x8.50-14 R4 |
| Rear Tires Size 2wd/4wd | 12.4-16 R4 |
Electrical
| Alternator | 40 amps |
| Lighting | 2 front work lights, 2 rear work lights, 2 tail lights, 4 ROPS mounted turn signals / 4-way flashers |
| Battery | 12 volts |
| Block Heater | Optional, CSA approved |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 11.1 mph (17.8 km/h) |
| Max Speed Reverse | 9.8 mph (15.8 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 11.2 gal/min (42.3 L/min) |
| Relief Valve Pressure | 420.7 psi (2900 kPa) |
