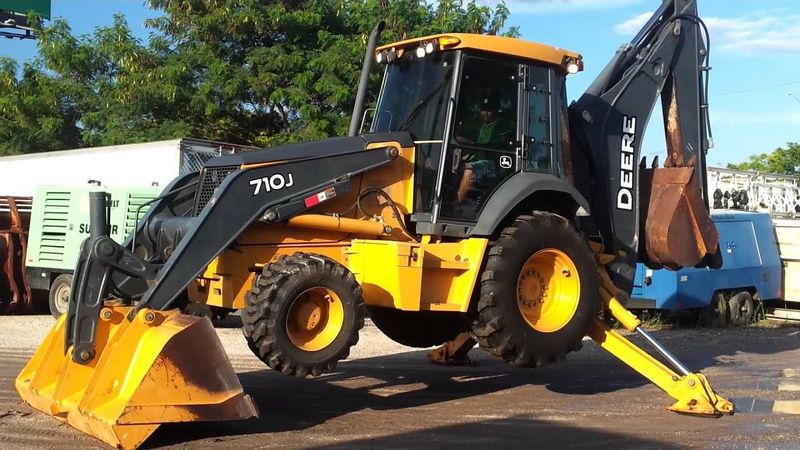

John Deere 710J
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 14.25 ft in (4340 mm) |
| Reach From Swivel - Std | 22.5 ft in (6860 mm) |
| Dig Depth - Std | 17.83 ft in (5440 mm) |
| Load Height - Ext | 17 ft in (5180 mm) |
| Reach From Swivel - Ext | 26.83 ft in (8190 mm) |
| Dig Depth - Ext | 22.33 ft in (6810 mm) |
| Bucket Dig Force - Std | 17000 lb (7711.08 kg) |
Dimensions
| Transport Length | 26.74 ft in (8150 mm) |
| Transport Width | 7.92 ft in (2410 mm) |
| Transport Height | 13.69 ft in (4170 mm) |
| Wheelbase | 8.27 ft in (2520 mm) |
| Ground Clearance | 1.17 ft in (356 mm) |
| Height To Top Of Suspended Cab | 9.75 ft in (2971.8 mm) |
Loader
| Clearance At Max Dump Height | 9.58 ft in (2920 mm) |
| Reach At Max Dump Height | 2.27 ft in (690 mm) |
| Dig Depth | 4.1 in (104 mm) |
| Lift Capacity At Full Height | 9285.87 lb (4212 kg) |
| Bucket Capacity | 1.62 yd3 (1.24 m3) |
| Bucket Width | 97 in (2464 mm) |
| Bucket Breakout Force | 15540 lb (69.1 kN) |
Engine
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 123 hp (92 kw) |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1300 rpm |
| Net Torque Rise | 41 % |
| Net Max Torque | 395 lb ft (537 Nm) |
| Aspiration | Turbocharged |
| Displacement | 414 cu in (6.8 L) |
Operational
| Operating Weight 2wd | 23000 lb (10433 kg) |
| Fuel Capacity | 69 gal (261 L) |
| Operating Weight 4wd | 26000 lb (11794 kg) |
| Hydraulic System Fluid Capacity | 40 gal (151 L) |
| Oil System Fluid Capacity | 5.3 gal (20 L) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Transmission Fluid Capacity | 4 gal (15.1 L) |
| Front Axle Fluid Capacity | 2.4 gal (9 L) |
| Rear Axle Fluid Capacity | 4.3 gal (16 L) |
| Turning Radius | 15 ft in (4535 mm) |
| Tire Size Front - 2wd / 4wd | 14.5/75-16 10PR/15-19.5 8PR |
| Rear Tires Size 2wd/4wd | 21L-28 14 PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.7 mph (39.6 km/h) |
| Max Speed Reverse | 17 mph (27.2 km/h) |
Hydraulic
| Pump Type | Axial-piston |
| Pump Flow Capacity | 52 gal/min (197 L/min) |
| Relief Valve Pressure | 3625 psi (24993 kPa) |
