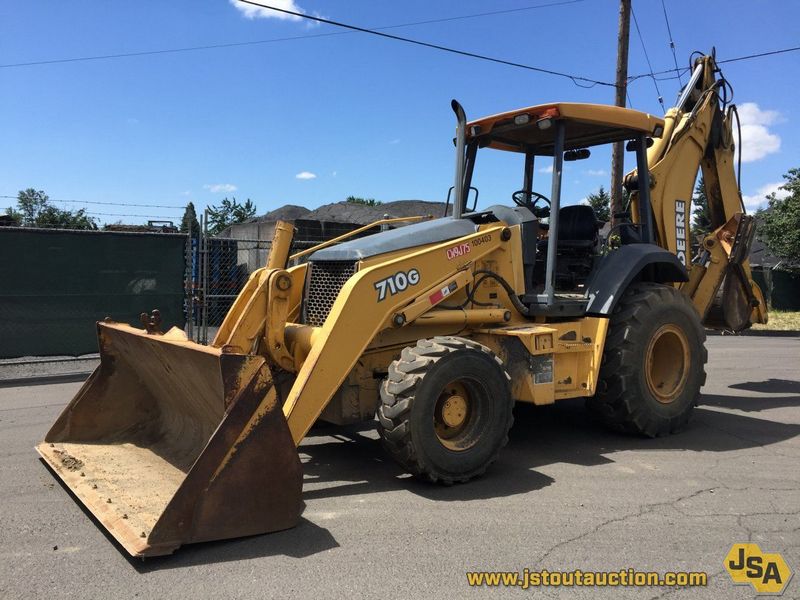

John Deere 710G
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 14.25 ft in (4340 mm) |
| Reach From Swivel - Std | 22.5 ft in (6860 mm) |
| Dig Depth - Std | 17.83 ft in (5440 mm) |
| Reach At Load Height - Std | 26.67 ft in (8130 mm) |
| Load Height - Ext | 16 ft in (4880 mm) |
| Bucket Dig Force - Ext | 17000 lb (7711.08 kg) |
| Bucket Dig Force - Std | 17000 lb (7711.08 kg) |
| Dig Depth - Ext | 22.5 ft in (6860 mm) |
| Reach At Load Height - Ext | 30.83 ft in (9400 mm) |
| Load At Max Lift - Ext | 2496 lb (1132 kg) |
| Load At Max Lift - Std | 4376 lb (1985 kg) |
| Reach From Swivel - Ext | 26.67 ft in (8130 mm) |
Dimensions
| Transport Length | 26.75 ft in (8150 mm) |
| Transport Width | 7.91 ft in (2410 mm) |
| Transport Height | 13.85 ft in (4220 mm) |
| Wheelbase | 8.24 ft in (2511 mm) |
| Ground Clearance | 1.17 ft in (356 mm) |
| Height To Top Of Suspended Cab | 9.75 ft in (2970 mm) |
Loader
| Clearance At Max Dump Height | 9.33 ft in (2840 mm) |
| Reach At Max Dump Height | 30.25 ft in (770 mm) |
| Dig Depth | 4.1 in (104 mm) |
| Bucket Breakout Force | 14800 lb (66 kN) |
| Bucket Width | 36 in (914 mm) |
| Bucket Capacity | 1.87 yd3 (1.34 m3) |
| Lift Capacity At Full Height | 8693 lb (3943 kg) |
Engine
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 122 hp (91 kw) |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1300 rpm |
| Net Torque Rise | 33 % |
| Net Max Torque | 397 lb ft (538.3 Nm) |
| Aspiration | Turbocharged |
Operational
| Operating Weight 2wd | 26500 lb (12020 kg) |
| Fuel Capacity | 69 gal (261 L) |
| Max Weight | 23000 lb (10430 kg) |
| Hydraulic System Fluid Capacity | 42 gal (159 L) |
| Oil System Fluid Capacity | 5.1 gal (19 L) |
| Cooling System Fluid Capacity | 7.2 gal (27 L) |
| Transmission Fluid Capacity | 4 gal (15 L) |
| Front Axle Fluid Capacity | 2.8 gal (10.6 L) |
| Rear Axle Fluid Capacity | 4.2 gal (16 L) |
| Turning Radius | 10.6 ft in (3230 mm) |
| Tire Size Front - 2wd / 4wd | 15-19.5SS-1 |
| Rear Tires Size 2wd/4wd | 21L-28R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Transmission Type | 4-speed, helical cut gear, full power-shifted transmission with hydraulic reverser |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23 mph (37.1 km/h) |
| Max Speed Reverse | 16.1 mph (25.9 km/h) |
Hydraulic
| Pump Type | Axial-piston, PCLS system |
| Pump Flow Capacity | 52 gal/min (197 L/min) |
| Relief Valve Pressure | 3625 psi (25000 kPa) |
