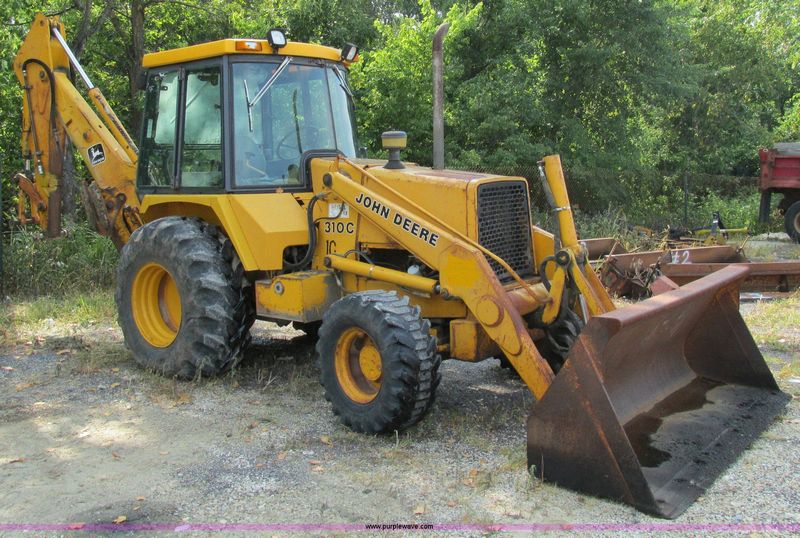

John Deere 310C
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 10.83 ft in (3300 mm) |
| Reach From Swivel - Std | 17.49 ft in (5330 mm) |
| Dig Depth - Std | 14.24 ft in (4340 mm) |
| Reach From Swivel - Ext | 21.07 ft in (6420 mm) |
| Bucket Dig Force - Ext | 11400.11 lb (5171 kg) |
| Dig Depth - Ext | 17.49 ft in (5330 mm) |
| Bucket Dig Force - Std | 11569.86 lb (5248 kg) |
| Load Height - Ext | 13.06 ft in (3980 mm) |
Dimensions
| Transport Length | 23.4 ft in (7130 mm) |
| Transport Width | 6.83 ft in (2080 mm) |
| Transport Height | 10.83 ft in (3300 mm) |
Loader
| Clearance At Max Dump Height | 8.83 ft in (2690 mm) |
| Reach At Max Dump Height | 2.33 ft in (710 mm) |
| Lift Capacity At Full Height | 5600 lb (2540.12 kg) |
| Bucket Capacity | 1 yd3 (0.77 m3) |
| Bucket Width | 92 in (2336.81 mm) |
| Bucket Breakout Force | 8700 lb (38.7 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | John Deere |
| Gross Power | 75 hp (56 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1300 rpm |
| Net Max Torque | 222 lb ft (301 Nm) |
| Displacement | 274.7 cu in (4.5 L) |
| Bore | 4.2 in (106 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Fuel Capacity | 23 gal (87.1 L) |
| Max Weight | 12400 lb (5624.6 kg) |
| Hydraulic System Fluid Capacity | 21 gal (79.5 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 3.5 gal (13.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed Reverse | 20.2 mph (32.5 km/h) |
Hydraulic
| Pump Type | Open center |
| Pump Flow Capacity | 35 gal/min (132.5 L/min) |
| Relief Valve Pressure | 2755 psi (18995.1 kPa) |
