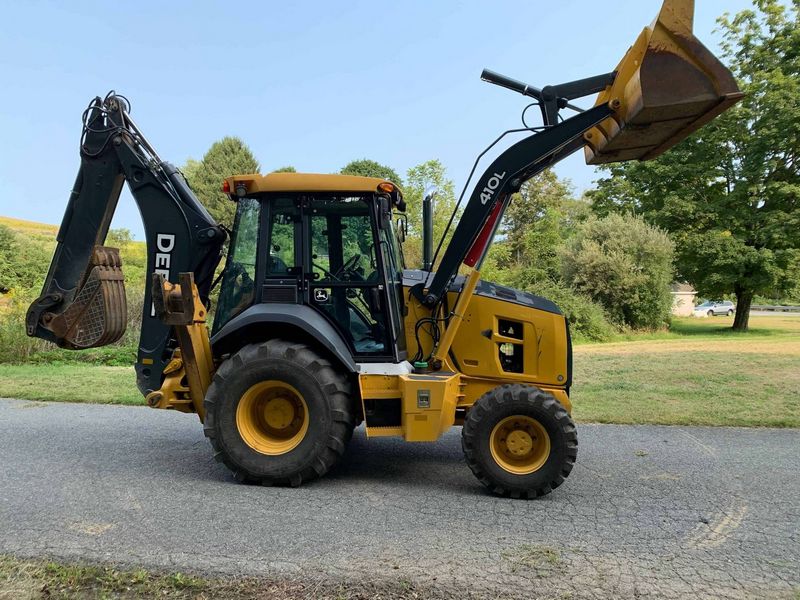

John Deere 410L
Browse All John Deere or Loader Backhoe Models
Contents:
Dimensions
| Wheelbase | 7.19 ft in (2190 mm) |
| Ground Clearance | 1.1 ft in (334 mm) |
| Dump Height | 8.8 ft in (2680 mm) |
| Dump Reach - General Purpose | 29.53 in (750 mm) |
| Height Over Ext Stick | 3930 mm (12 ft 11 in) |
| Height Over Std Stick | 12.9 ft in (3930 mm) |
| Max Length With Ext. Stick | 24.38 ft in (7430 mm) |
| Max Length With Std. Stick | 24.38 ft in (7430 mm) |
| Shovel Pin Height - General Purpose | 11.32 ft in (3450 mm) |
| Width - General Purpose Shovel | 2346 mm (7 ft 8 in) |
| Bucket Rotation - Position 1 | 190 |
| Width Over Tires | 7.16 ft in (2180 mm) |
| Digging Depth | 6.19 in (157 mm) |
Engine
| Engine Output-Net | 113 hp (84.3 kw) |
| Battery | 12 |
| Engine Make | John Deere |
| Engine Model | PowerTech Plus 4045HT083 |
| Rated Speed | 2240 rpm |
| Displacement | 274.7 cu in (4.5 L) |
Capacities
| Fuel Tank | 37 gal (140.1 L) |
| Hydraulic Tank | 11.9 gal (45 L) |
| Stick Tearout | 10925.8 lb (48.6 kN) |
| Boom Lift - Maximum Reach - Non-Extending Dipper | 4389.5 lb (1991 kg) |
| 4wd Front Axle | 1.8 gal (6.5 L) |
| Rear Axle | 4.8 gal (18 L) |
| Bucket Tearout - Non-Extending Dipper | 17355.3 lb (77.2 kN) |
| Shovel Breakout - General Purpose | 10633.5 lb (47.3 kN) |
| Lift To Full Height - General Purpose Shovel | 7149.6 lb (3243 kg) |
| Shovel Capacity - Standard General Purpose | 1.4 yd3 (1 m3) |
Transmission
| Transmission Type | Powershift |
Weights
| Operating Weights | 18029.5 lb (8178 kg) |
| Weight - 4wd, Gp, Std Stick | 18049.3 lb (8187 kg) |
Hydraulic
| Pump Type | Axial Piston Pump |
| Pump Flow Capacity | 42.1 gal/min (159 L/min) |
Brakes
| Actuation | Hydraulic with Power Assist |
| Brakes Type | Wet Multi Disc |
