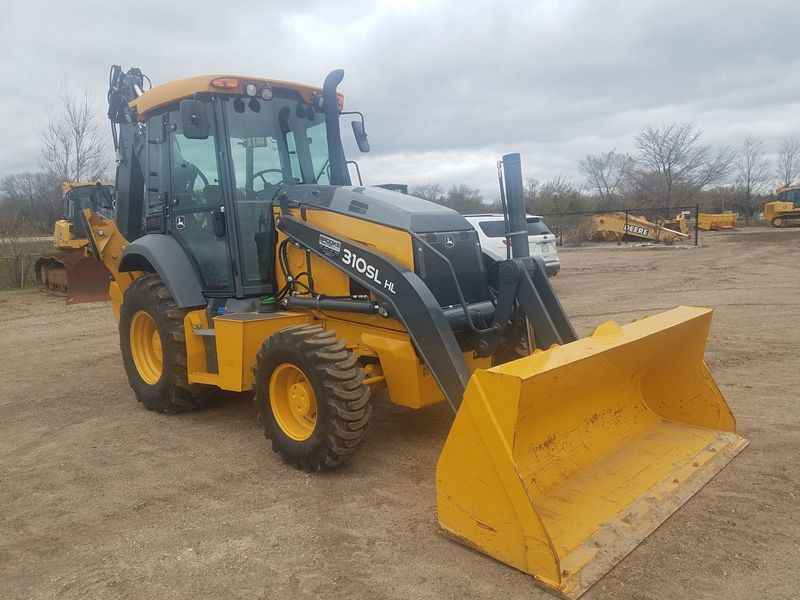

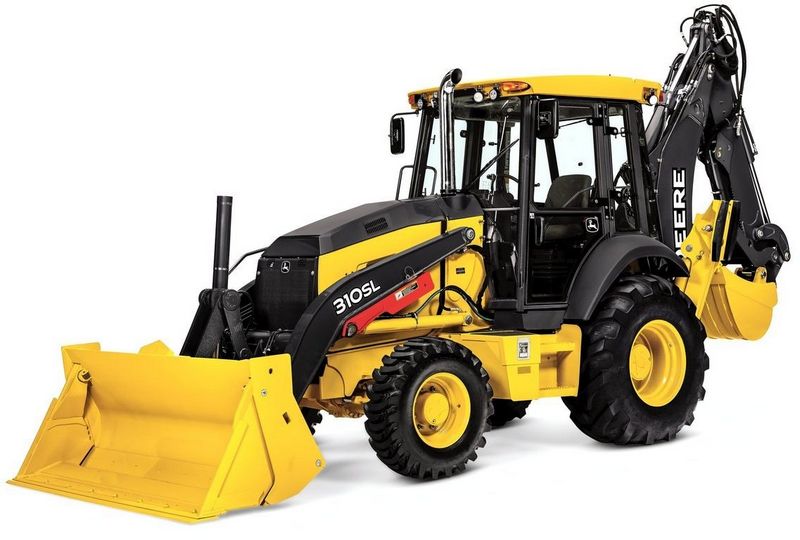

John Deere 310SL
Browse All John Deere or Loader Backhoe Models
Contents:
Dimensions
| Wheelbase | 7.19 ft in (2190 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Dump Height | 8.6 ft in (2620 mm) |
| Dump Reach - General Purpose | 27.52 in (699 mm) |
| Height Over Ext Stick | 3500 mm (11 ft 6 in) |
| Height Over Std Stick | 11.46 ft in (3490 mm) |
| Max Length With Std. Stick | 23.89 ft in (7280 mm) |
| Shovel Pin Height - General Purpose | 11.32 ft in (3450 mm) |
| Width - General Purpose Shovel | 2184 mm (7 ft 2 in) |
| Bucket Rotation - Position 1 | 190 |
| Width Over Tires | 7.16 ft in (2180 mm) |
| Digging Depth | 4.18 in (106 mm) |
Engine
| Engine Output-Net | 101 hp (75.4 kw) |
| Battery | 12 |
| Engine Make | John Deere |
| Engine Model | PowerTech Plus 4045HT096 |
| Rated Speed | 2244 rpm |
| Displacement | 274.7 cu in (4.5 L) |
Capacities
| Fuel Tank | 37 gal (140.1 L) |
| Hydraulic Tank | 11.9 gal (45 L) |
| Stick Tearout | 8228.1 lb (36.6 kN) |
| Boom Lift - Maximum Reach - Non-Extending Dipper | 2905.7 lb (1318 kg) |
| 4wd Front Axle | 1.8 gal (6.5 L) |
| Rear Axle | 4.8 gal (18 L) |
| Bucket Tearout - Non-Extending Dipper | 12364.5 lb (55 kN) |
| Shovel Breakout - General Purpose | 11038.2 lb (49.1 kN) |
| Lift To Full Height - General Purpose Shovel | 7632.5 lb (3462 kg) |
| Shovel Capacity - Standard General Purpose | 1.2 yd3 (0.9 m3) |
Transmission
| Transmission Type | Powershift |
Weights
| Operating Weights | 15871.1 lb (7199 kg) |
| Weight - 4wd, Gp, Std Stick | 16356.1 lb (7419 kg) |
Hydraulic
| Pump Type | Tandem Gear Pump |
| Pump Flow Capacity | 36 gal/min (136 L/min) |
Brakes
| Actuation | Hydraulic with Power Assist |
| Brakes Type | Wet Multi Disc |
