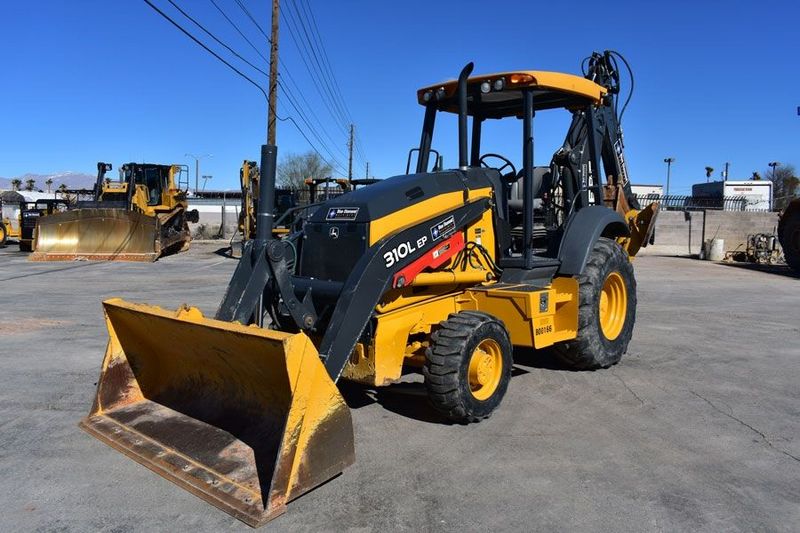

John Deere 310L EP
Browse All John Deere or Loader Backhoe Models
Contents:
Dimensions
| Wheelbase | 7.19 ft in (2190 mm) |
| Ground Clearance | 0.97 ft in (293 mm) |
| Dump Height | 8.9 ft in (2710 mm) |
| Dump Reach - General Purpose | 28.9 in (734 mm) |
| Height Over Std Stick | 11.23 ft in (3420 mm) |
| Max Length With Std. Stick | 23.76 ft in (7240 mm) |
| Shovel Pin Height - General Purpose | 11.32 ft in (3450 mm) |
| Width - General Purpose Shovel | 2184 mm (7 ft 2 in) |
| Bucket Rotation - Position 1 | 190 |
| Width Over Tires | 7.09 ft in (2160 mm) |
| Digging Depth | 4.22 in (107 mm) |
Engine
| Engine Output-Net | 70 hp (52.2 kw) |
| Battery | 12 |
| Engine Make | John Deere |
| Engine Model | PowerTech E 4045HT072 |
| Rated Speed | 1900 rpm |
| Displacement | 274.7 cu in (4.5 L) |
Capacities
| Fuel Tank | 37 gal (140.1 L) |
| Hydraulic Tank | 11.9 gal (45 L) |
| Stick Tearout | 6991.6 lb (31.1 kN) |
| Boom Lift - Maximum Reach - Non-Extending Dipper | 2330.3 lb (1057 kg) |
| 4wd Front Axle | 1.8 gal (6.5 L) |
| Rear Axle | 4.8 gal (18 L) |
| Bucket Tearout - Non-Extending Dipper | 10835.8 lb (48.2 kN) |
| Shovel Breakout - General Purpose | 9352.1 lb (41.6 kN) |
| Lift To Full Height - General Purpose Shovel | 6832.2 lb (3099 kg) |
| Shovel Capacity - Standard General Purpose | 1.1 yd3 (0.8 m3) |
Transmission
| Transmission Type | Powershift |
Weights
| Operating Weights | 14799.7 lb (6713 kg) |
| Weight - 4wd, Gp, Std Stick | 14799.7 lb (6713 kg) |
Hydraulic
| Pump Type | Tandem Gear Pump |
| Pump Flow Capacity | 31.5 gal/min (119 L/min) |
Brakes
| Actuation | Hydraulic with Power Assist |
| Brakes Type | Wet Multi Disc |
