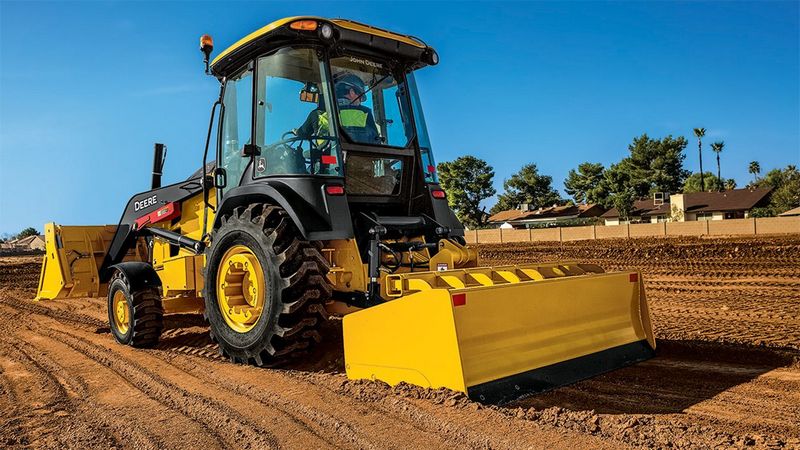

John Deere 210L
Browse All John Deere or Loader Backhoe Models
Contents:
Dimensions
| Transport Height- Minimum | 8.67 ft in (2.64 m) |
| Dump Clearance @ Full Height, 45° Dump: Bucket | 8.7 ft in (2.65 m) |
| Dump Reach - General Purpose | 29.02 in (737 mm) |
| Bucket Hinge Pin | 131.5 in (3340 mm) |
| Overall Length | 17.43 ft in (5310 mm) |
| Overall Width | 83.86 in (2130 mm) |
| Standard Shovel Width | 85.99 in (2184 mm) |
Loader
| Lift Capacity At Full Height | 5436.6 lb (2466 kg) |
Engine
| Emission Tier Level | Tier 4 |
| Engine Output-Net | 93 hp (69.4 kw) |
| Pto Speed | 540 rpm |
| Engine Make | John Deere |
| Engine Model | PowerTech Plus 4045HT082 |
| Rated Speed | 2244 rpm |
| System Voltage | 12 V |
| Displacement | 274.7 cu in (4.5 L) |
Capacities
| Fuel Tank - Diesel | 31 gal (117.3 L) |
| Hydraulic Tank | 11.9 gal (45 L) |
| Shovel 1 Capacity | 1.3 yd3 (1 m3) |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 19.7 mph (31.7 km/h) |
| Max Speed Reverse | 8.1 mph (12.9 km/h) |
| System Pressure | 2750 psi (18960.6 kPa) |
Weights
| Operating Weight | 11325.2 lb (5137 kg) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 25.4 gal/min (96 L/min) |
Axles
| Front | Mechanical FWD |
Brakes
| Actuation | Hydraulic w/Power Assist |
| Brakes Type | Wet Multi Disc |
