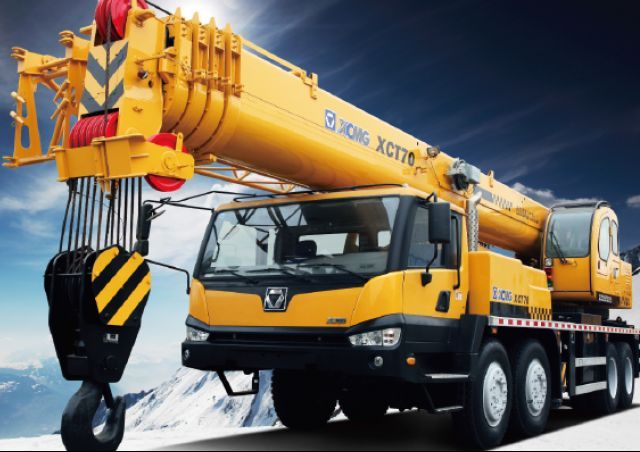

XCMG XCT70E
Browse All XCMG or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38.72 ft in (11.8 m) |
| Max Height @ Max Raise Angle - No Jib | 147.64 ft in (45 m) |
| Max Lift Capacity | 139999.93 lb (63502.9 kg) |
Dimensions
| Transport Length | 46.45 ft in (14155 mm) |
| Transport Width | 9.19 ft in (2800 mm) |
| Transport Height | 12.06 ft in (3675 mm) |
| Ground Clearance | 1.07 ft in (324 mm) |
| Upper Structure Tail Swing Radius | 12.66 ft in (3857 mm) |
| Gradeability | 40 % |
| Approach Angle | 21 degrees |
| Angle Of Departure | 14 degrees |
Carrier Engine
| Model | WD615.338 |
| Gross Power | 370.2 hp (276 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight | 98083.7 lb (44490 kg) |
Transmission
| Max Speed - Forward | 49.8 mph (80 km/h) |
