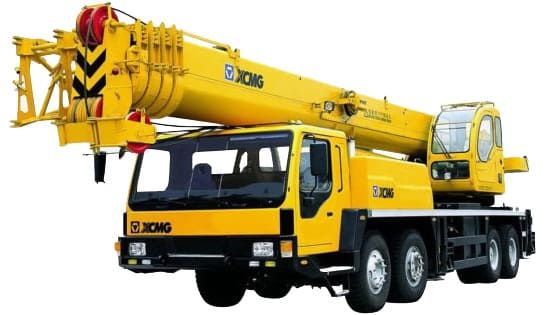

XCMG QY65K
Browse All XCMG or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36.75 ft in (11.2 m) |
| Max Height @ Max Raise Angle - No Jib | 137.8 ft in (42 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Swing Speed | 2 rpm |
| Max Lift Capacity | 129999.98 lb (58967 kg) |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 44.3 ft in (13500 mm) |
| Transport Width | 9.19 ft in (2800 mm) |
| Transport Height | 11.32 ft in (3450 mm) |
| Ground Clearance | 0.89 ft in (270 mm) |
| Upper Structure Tail Swing Radius | 11.65 ft in (3550 mm) |
| Gradeability | 35 % |
| Approach Angle | 16.5 degrees |
| Angle Of Departure | 11.3 degrees |
Carrier Engine
| Make | XCMG |
| Model | WD615.44 |
| Gross Power | 315.2 hp (235 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 922 lb ft (1250 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 89507.7 lb (40600 kg) |
| Number Of Axels | 4 |
Transmission
| Max Speed - Forward | 46.7 mph (75 km/h) |
