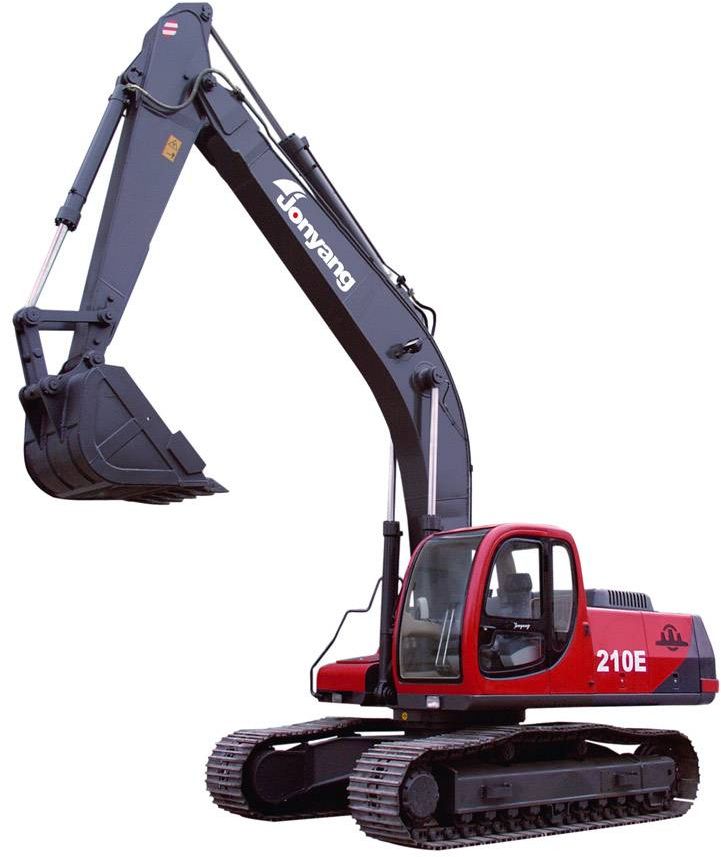

Jonyang JY210E
Browse All Jonyang or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.03 ft in (9760 mm) |
| Shipping Height Of Unit | 10.77 ft in (3280 mm) |
| Max Cutting Height | 30.28 ft in (9228 mm) |
| Max Loading Height | 21.04 ft in (6410 mm) |
| Max Reach Along Ground | 32.81 ft in (10000 mm) |
| Max Digging Depth | 21.46 ft in (6540 mm) |
| Boom/Stick Option (Hex) 1 | Boom 5710mm/Stick 2920mm |
Dimensions
| Ground Clearance | 1.53 ft in (465 mm) |
| Height To Top Of Cab | 9.04 ft in (2755 mm) |
| Width To Outside Of Tracks | 9.85 ft in (3000 mm) |
| Length Of Track On Ground | 12.21 ft in (3720 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.48 ft in (1060 mm) |
Undercarriage
| Track Gauge | 7.88 ft in (2400 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Ground Pressure | 6.53 psi (45 kPa) |
Engine
| Engine Make | 2301 |
| Engine Model | Cummins 6A5, 9-C |
| Net Power | 169 hp (126 kw) |
Operational
| Operating Weight | 42000 lb (- kg) |
| Hydraulic System Relief Valve Pressure | 4351.2 psi (30000 kPa) |
| Hydraulic Pump Flow Capacity | 124.2 gal/min (470 L/min) |
Swing Mechanism
| Swing Speed | 13 rpm |
