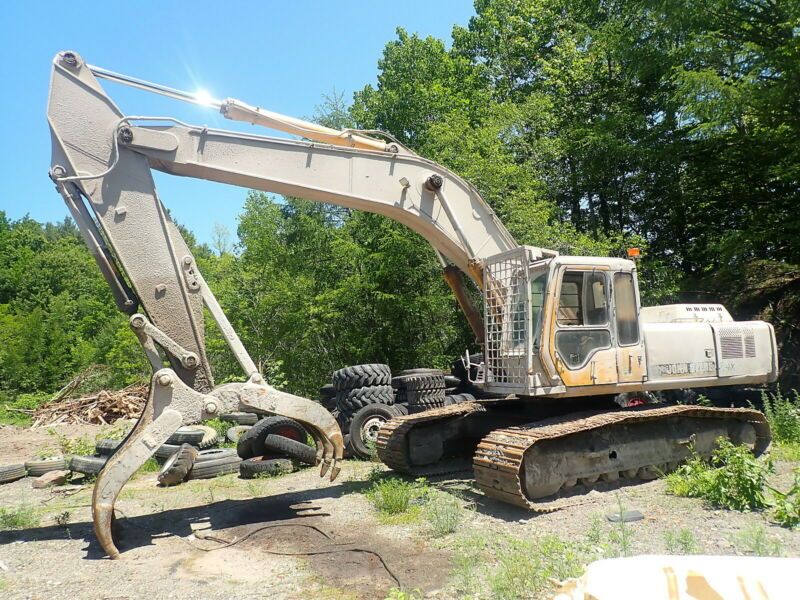

John Deere 892E LC Long Front
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 47 ft in (14330 mm) |
| Shipping Height Of Unit | 10.92 ft in (3330 mm) |
| Max Cutting Height | 50 ft in (15230 mm) |
| Max Loading Height | 44.25 ft in (13480 mm) |
| Max Reach Along Ground | 59.92 ft in (18250 mm) |
| Max Digging Depth | 45.17 ft in (13770 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length Stick 25ft.10in. (7.87m ) |
Dimensions
| Ground Clearance | 1.67 ft in (500 mm) |
| Height To Top Of Cab | 9.92 ft in (3010 mm) |
| Width To Outside Of Tracks | 11.08 ft in (3390 mm) |
| Length Of Track On Ground | 15.17 ft in (4010 mm) |
| Tail Swing Radius | 10.83 ft in (3290 mm) |
| Removal Counterweight Clearance | 3.83 ft in (1175 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 24 in (600 mm) |
| Max Travel Speed | 2.6 mph (4.2 km/h) |
| Drawbar Pull | 51200 lb (227 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 50 |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 6.56 psi (45 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6076A |
| Net Power | 220 hp (164 kw) |
| Gross Power | 232 hp (173 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 650 lb ft (881 Nm) |
| Displacement | 466 cu in (7.7 L) |
| Aspiration | Turbocharged with aftercooler |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 65120 lb (29538 kg) |
| Fuel Capacity | 135 gal (510 L) |
| Cooling System Fluid Capacity | 34 gal (32 L) |
| Hydraulic System Fluid Capacity | 82 gal (310 L) |
| Engine Oil Capacity | 7.5 gal (28 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 13.8 gal (13 L) |
| Alternator Supplied Amperage | 42 amps |
| Hydraulic System Relief Valve Pressure | 4270 psi (29440 kPa) |
| Hydraulic Pump Flow Capacity | 144 gal/min (546 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
