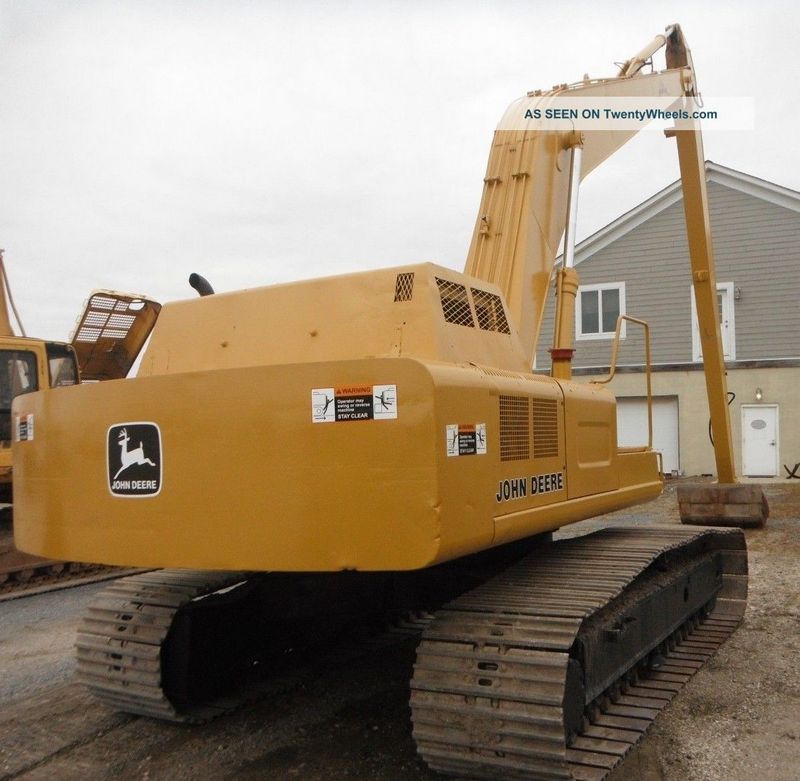

John Deere 892D LC Long Front
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 45.92 ft in (13990 mm) |
| Shipping Height Of Unit | 14.25 ft in (4350 mm) |
| Max Cutting Height | 50.58 ft in (15400 mm) |
| Max Loading Height | 43.42 ft in (13250 mm) |
| Max Reach Along Ground | 60.5 ft in (18440 mm) |
| Max Digging Depth | 45.83 ft in (13980 mm) |
| Boom/Stick Option (Hex) 1 | Standard |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 9.83 ft in (2990 mm) |
| Width To Outside Of Tracks | 11.08 ft in (3390 mm) |
| Length Of Track On Ground | 13.17 ft in (4010 mm) |
| Tail Swing Radius | 10.75 ft in (3280 mm) |
| Removal Counterweight Clearance | 3.75 ft in (1150 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31 in (800 mm) |
| Max Travel Speed | 2.5 mph (4.2 km/h) |
| Drawbar Pull | 45410 lb (202 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 50 |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 6 psi (41.2 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6466A |
| Net Power | 195 hp (116 kw) |
| Gross Power | 205 hp (153 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 827 lb ft (1121.3 Nm) |
| Displacement | 4667.7 cu in (610 L) |
| Aspiration | Turbocharged with aftercooler |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 63875 lb (28973 kg) |
| Fuel Capacity | 135 gal (510 L) |
| Cooling System Fluid Capacity | 36 gal (34 L) |
| Hydraulic System Fluid Capacity | 87 gal (330 L) |
| Engine Oil Capacity | 25 gal (24 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 11 gal (10 L) |
| Alternator Supplied Amperage | 42 amps |
| Hydraulic System Relief Valve Pressure | 4050 psi (27930 kPa) |
| Hydraulic Pump Flow Capacity | 144.2 gal/min (546 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.7 m3) |
