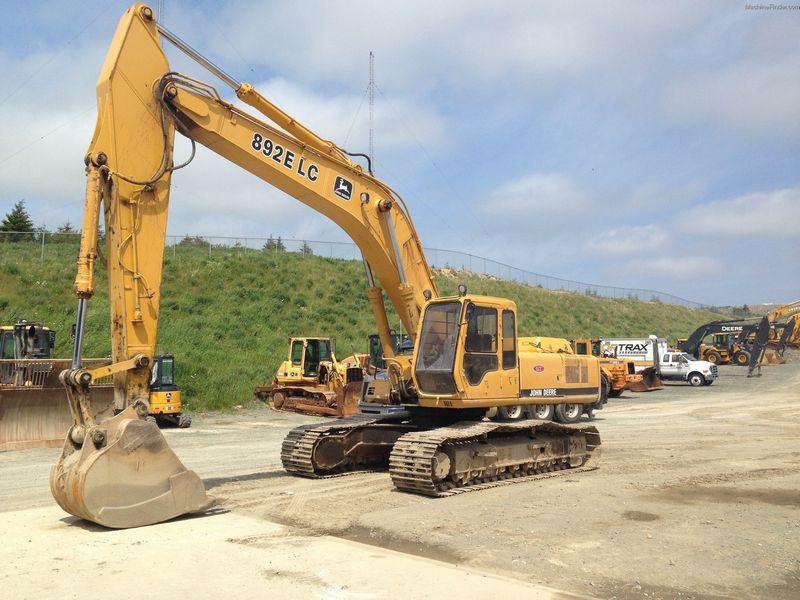

John Deere 892E
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.25 ft in (11060 mm) |
| Shipping Height Of Unit | 11.17 ft in (3410 mm) |
| Max Cutting Height | 32.33 ft in (9850 mm) |
| Max Loading Height | 22.33 ft in (6810 mm) |
| Max Reach Along Ground | 34 ft in (10360 mm) |
| Max Vertical Wall Digging Depth | 18.43 ft in (5610 mm) |
| Max Digging Depth | 22.42 ft in (6840 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 8ft. 9in. (2.7 m ) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 35.92 ft in (10940 mm) |
| Max Cutting Height | 33.5 ft in (10220 mm) |
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Max Loading Height | 23.33 ft in (7120 mm) |
| Max Reach Along Ground | 35.75 ft in (10900 mm) |
| Max Vertical Wall Digging Depth | 21.25 ft in (6480 mm) |
| Max Digging Depth | 24.25 ft in (7380 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 10ft 6in. (3.2m ) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.08 ft in (11010 mm) |
| Max Cutting Height | 34.75 ft in (10600 mm) |
| Max Loading Height | 24.58 ft in (7490 mm) |
| Shipping Height Of Unit | 11.42 ft in (3490 mm) |
| Max Reach Along Ground | 38.33 ft in (11680 mm) |
| Max Vertical Wall Digging Depth | 24.17 ft in (7360 mm) |
| Max Digging Depth | 26.83 ft in (8180 mm) |
| Boom/Stick Option (Hex) 3 | Arm Length 13ft 1in. (4.0m ) |
Dimensions
| Ground Clearance | 1.67 ft in (500 mm) |
| Height To Top Of Cab | 9.92 ft in (3010 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3190 mm) |
| Length Of Track On Ground | 13.17 ft in (4010 mm) |
| Tail Swing Radius | 10.83 ft in (3300 mm) |
| Removal Counterweight Clearance | 3.83 ft in (1175 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 24 in (600 mm) |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Ground Pressure | 6.81 psi (46.9 kPa) |
| Number Of Shoes Per Side | 50 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 9 |
| Drawbar Pull | 52120 lb (231 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6076A |
| Net Power | 220 hp (164 kw) |
| Gross Power | 232 hp (173 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 650 lb ft (881 Nm) |
| Displacement | 466 cu in (7.7 L) |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 67450 lb (30595 kg) |
| Fuel Capacity | 135 gal (210 L) |
| Cooling System Fluid Capacity | 34 gal (32 L) |
| Hydraulic System Fluid Capacity | 82 gal (310 L) |
| Engine Oil Capacity | 6.3 gal (24 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 13.8 gal (13 L) |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4270 psi (29440 kPa) |
| Hydraulic Pump Flow Capacity | 144 gal/min (546 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 2.4 yd3 (1.8 m3) |
