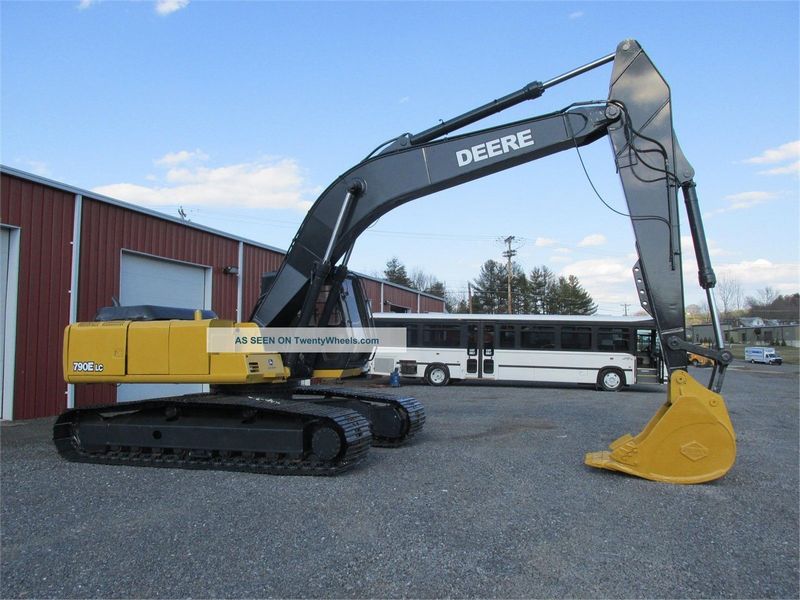

John Deere 790E LC Long Front
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 44.92 ft in (13700 mm) |
| Shipping Height Of Unit | 10.67 ft in (3250 mm) |
| Max Cutting Height | 51.75 ft in (15780 mm) |
| Max Loading Height | 44.42 ft in (13530 mm) |
| Max Reach Along Ground | 59.42 ft in (18110 mm) |
| Max Digging Depth | 45.33 ft in (13830 mm) |
| Boom/Stick Option (Hex) 1 | Arm 25 ft 5 in (7860 mm) |
Dimensions
| Ground Clearance | 1.5 ft in (460 mm) |
| Height To Top Of Cab | 9.58 ft in (2920 mm) |
| Width To Outside Of Tracks | 11.08 ft in (3390 mm) |
| Length Of Track On Ground | 12.58 ft in (3840 mm) |
| Tail Swing Radius | 9.67 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.58 ft in (1090 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 24 in (600 mm) |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Drawbar Pull | 39700 lb (176.5 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 51 |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 6.47 psi (44.6 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 155 hp (116 kw) |
| Gross Power | 161 hp (120 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 465 lb ft (630 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 51550 lb (23383 kg) |
| Fuel Capacity | 82 gal (310 L) |
| Cooling System Fluid Capacity | 5.8 gal (22 L) |
| Hydraulic System Fluid Capacity | 68.7 gal (260 L) |
| Engine Oil Capacity | 5 gal (19 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 6 gal (5.7 L) |
| Alternator Supplied Amperage | 42 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34340 kPa) |
| Hydraulic Pump Flow Capacity | 100 gal/min (378 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.7 m3) |
