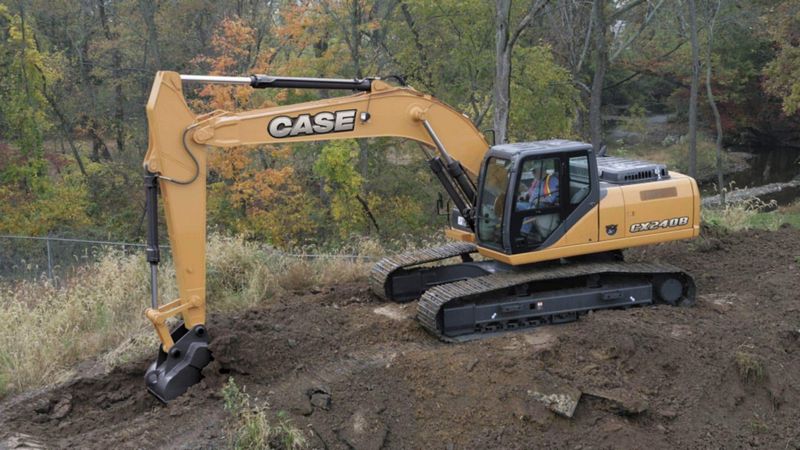

Case CX240B
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.5 ft in (9910 mm) |
| Shipping Height Of Unit | 10.86 ft in (3310 mm) |
| Max Cutting Height | 33 ft in (10070 mm) |
| Max Loading Height | 23.17 ft in (7060 mm) |
| Max Reach Along Ground | 34.83 ft in (10620 mm) |
| Max Vertical Wall Digging Depth | 21.92 ft in (6680 mm) |
| Max Digging Depth | 24.33 ft in (7420 mm) |
| Boom/Stick Option (Hex) 1 | Boom 19'2" (5800mm)/ Stick 11'7" (3520 mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 32.58 ft in (9930 mm) |
| Max Cutting Height | 32 ft in (9760 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Loading Height | 22.17 ft in (6760 mm) |
| Max Reach Along Ground | 33.08 ft in (10100 mm) |
| Max Vertical Wall Digging Depth | 20.08 ft in (6140 mm) |
| Max Digging Depth | 22.58 ft in (6900 mm) |
| Boom/Stick Option (Hex) 2 | Boom 19'2" (5800mm)/ Stick 9'10" (3000 mm) |
Dimensions
| Ground Clearance | 18 ft in (460 mm) |
| Height To Top Of Cab | 9.83 ft in (3000 mm) |
| Width To Outside Of Tracks | 11.08 ft in (3390 mm) |
| Length Of Track On Ground | 12.58 ft in (3840 mm) |
| Tail Swing Radius | 9.67 ft in (2950 mm) |
| Removal Counterweight Clearance | 43 ft in (1100 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Number Of Shoes Per Side | 51 |
| Drawbar Pull | 45254 lb (201.3 kN) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Ground Pressure | 5.2 psi (35.86 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | 4HK1X, Tier III certified |
| Net Power | 177 hp (132 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 469 lb ft (635.9 Nm) |
| Displacement | 317 cu in (5.2 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 55120 lb (25000 kg) |
| Fuel Capacity | 108.3 gal (410 L) |
| Cooling System Fluid Capacity | 6.8 gal (25.2 L) |
| Hydraulic System Fluid Capacity | 66 gal (250 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 6.1 gal (23.1 L) |
| Swing Drive Fluid Capacity | 2.6 gal (9.7 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Flow Capacity | 32.7 gal/min (123.6 L/min) |
Swing Mechanism
| Swing Speed | 10.7 rpm |
Buckets
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.1 yd3 (1.6 m3) |
