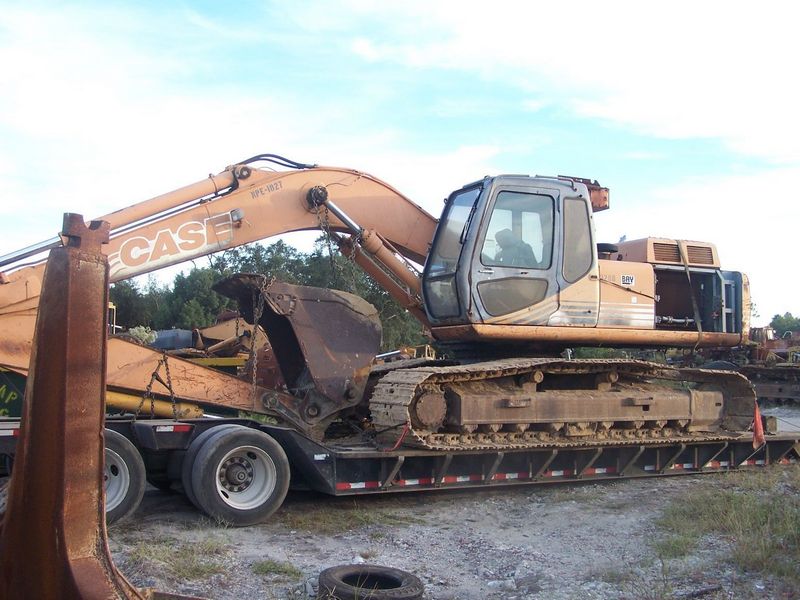

Case 9040B
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.85 ft in (10010 mm) |
| Shipping Height Of Unit | 10.57 ft in (3220 mm) |
| Max Cutting Height | 32.58 ft in (9930 mm) |
| Max Loading Height | 22.58 ft in (6880 mm) |
| Max Reach Along Ground | 35.01 ft in (10670 mm) |
| Max Vertical Wall Digging Depth | 21.92 ft in (6680 mm) |
| Max Digging Depth | 24.25 ft in (7390 mm) |
| Boom/Stick Option (Hex) 1 | Boom 19'2" (5800mm)/ Stick 11'7" (3500mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 32.75 ft in (9980 mm) |
| Max Cutting Height | 31.83 ft in (9700 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Loading Height | 21.92 ft in (6680 mm) |
| Max Reach Along Ground | 33.67 ft in (10260 mm) |
| Max Vertical Wall Digging Depth | 20.35 ft in (6200 mm) |
| Max Digging Depth | 22.84 ft in (6960 mm) |
| Boom/Stick Option (Hex) 2 | Boom 19'2" (5800mm)/ Stick 10'2" (3100mm) |
Dimensions
| Ground Clearance | 2.5 ft in (760 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
| Width To Outside Of Tracks | 11.09 ft in (3380 mm) |
| Length Of Track On Ground | 12.6 ft in (3840 mm) |
| Tail Swing Radius | 9.85 ft in (3000 mm) |
| Removal Counterweight Clearance | 3.58 ft in (1090 mm) |
Undercarriage
| Shoe Size | 32 in (812.8 mm) |
| Number Of Shoes Per Side | 51 |
| Ground Pressure | 5.2 psi (35.86 kPa) |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 2 |
| Drawbar Pull | 43000 lb (191.28 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | 6T-830 |
| Net Power | 178 hp (132.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 574 lb ft (778.3 Nm) |
| Displacement | 505 cu in (8.3 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 53140 lb (24103.9 kg) |
| Fuel Capacity | 81.9 gal (310 L) |
| Cooling System Fluid Capacity | 6.8 gal (25.5 L) |
| Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 5.9 gal (22 L) |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 65 amps |
| Hydraulic System Relief Valve Pressure | 4554 psi (218.1 kPa) |
| Hydraulic Pump Flow Capacity | 56.1 gal/min (212 L/min) |
Swing Mechanism
| Swing Speed | 10.4 rpm |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (1 m3) |
| Minimum Bucket Capacity | 1 yd3 (0.8 m3) |
| Maximum Bucket Capacity | 1.9 yd3 (1.4 m3) |
