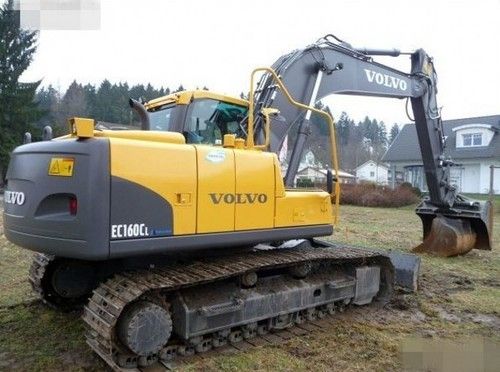

Volvo EC160C
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.81 ft in (8780 mm) |
| Shipping Height Of Unit | 9.78 ft in (2980 mm) |
| Max Cutting Height | 27.99 ft in (8530 mm) |
| Max Loading Height | 20.05 ft in (6110 mm) |
| Max Reach Along Ground | 27.86 ft in (8490 mm) |
| Max Vertical Wall Digging Depth | 13.36 ft in (4070 mm) |
| Max Digging Depth | 18.84 ft in (5740 mm) |
| Boom/Stick Option (Hex) 1 | Boom 17'1" (5200mm)/Stick 7'7" (2300mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 28.45 ft in (8670 mm) |
| Max Cutting Height | 28.84 ft in (8790 mm) |
| Shipping Height Of Unit | 9.52 ft in (2900 mm) |
| Max Loading Height | 20.81 ft in (6340 mm) |
| Max Reach Along Ground | 28.91 ft in (8810 mm) |
| Max Vertical Wall Digging Depth | 14.9 ft in (4540 mm) |
| Max Digging Depth | 19.82 ft in (6040 mm) |
| Boom/Stick Option (Hex) 2 | Boom 17'1" (5200mm)/Stick 8'6" (2600mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 28.58 ft in (8710 mm) |
| Max Cutting Height | 29.53 ft in (9000 mm) |
| Max Loading Height | 31.3 ft in (9540 mm) |
| Shipping Height Of Unit | 9.91 ft in (3020 mm) |
| Max Reach Along Ground | 30.12 ft in (9180 mm) |
| Max Vertical Wall Digging Depth | 16.28 ft in (4960 mm) |
| Max Digging Depth | 21.13 ft in (6440 mm) |
| Boom/Stick Option (Hex) 3 | Boom 17'1" (5200mm)/Stick 9'10" (3000mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 9.52 ft in (2900 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 10.44 ft in (3180 mm) |
| Tail Swing Radius | 8.04 ft in (2450 mm) |
| Removal Counterweight Clearance | 3.32 ft in (1010 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.5 mph (5.64 km/h) |
| Ground Pressure | 5.9 psi (40.68 kPa) |
| Number Of Shoes Per Side | 44 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 7 |
| Drawbar Pull | 32520 lb (144.66 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D6E EBE3 |
| Net Power | 117 hp (87.3 kw) |
| Gross Power | 131 hp (97.7 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 461 lb ft (625.1 Nm) |
| Displacement | 348 cu in (5.8 L) |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1350 rpm |
Operational
| Operating Weight | 38340 lb (17390.8 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Hydraulic System Fluid Capacity | 70.1 gal (265 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal (2.6 L) |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 76 gal/min (287.7 L/min) |
Swing Mechanism
| Swing Speed | 11.9 rpm |
| Swing Torque | lb ft (51700 Nm) |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (1 m3) |
